測量電子元件和焊錫隨時間變化的潤濕性

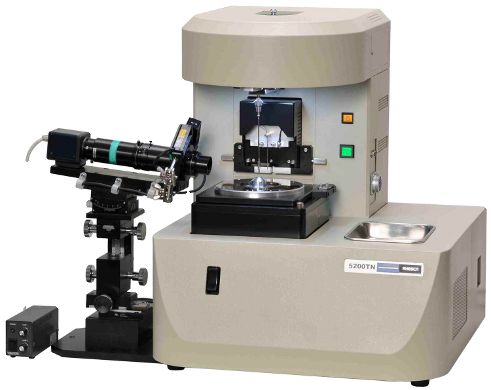

可焊性測試儀
Model:
5200TN
Maker:
RHESCA
特點
可按照國際標準進行可焊性測試。
使用潤濕平衡法進行高精度測量。
0603、0402等晶片零件可以使用小球法進行評估。
我們擁有與各種零件相容的夾具,可以評估各種形狀的零件。
規格
量測範圍 | ±10mN、50mN | |
溫度設定範圍 | 常溫~450℃ | |
溫度精度 | ±2℃(245℃設定時) | |
焊錫槽 | φ60mm、深度30mm(也可使用深度60mm) | |
浸入時間 | 1~999s、1~999min | |
浸入深度 | 0.01~1mm | 0.01step |
1~20mm | 0.1step | |
浸入速度 | 0.1~1mm/s | 0.1step |
1~5mm/s | 0.5step | |
5~30mm/s | 5step | |
應力精度 | ±0.1%FS(10mN設定時:0.01mN、50mN設定時:0.05mN) | |
時間軸應答性 | 0.14s (ZERO-FULLSCALE) | |
測試平台移動距離 | X軸:±5mm、Y軸:±5mm | |
樣品重量 | 10g | |
電源 | AC100-220V±10% 50/60Hz | |
消耗功率 | 600W | |
重量 | 45kg | |
尺寸 | 522(W)×527(D)×556(H)mm |
