- MICROTEST 線材測試儀 8740
一機檢測線束/連接器電氣特性，包含導通、斷短路、耐壓絕緣、電阻、電容
MICROTEST 8740系列線材測試儀，量測技術採用二線式量測，對於不需要量測到非常低阻的產品，考量到測試治具的成本因素下可選型8740，測試項目包含導通阻抗、斷/短路、AC/DC安規耐壓、IR絕緣、元件(電阻/電容/二極體)，測試點位可選型128/256/512點，AC耐壓輸出最高1000V，DC耐壓輸出最高1500V，支援PC連線軟體與BAR Code掃描，滿足線材連接器生產自動線測試要求。
線材測試儀
Model:
8740
Maker:
MICROTEST

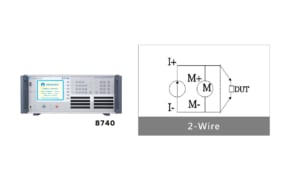

8740專業線材測試儀採用二線式測量技術
適合一般阻值不會太低特性的線材/連接器測試導通阻抗

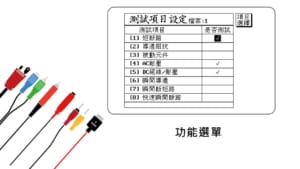

8740一機提供導通阻抗、斷短路測試、AC/DC安規耐壓與絕緣測試，以及元件測試功能

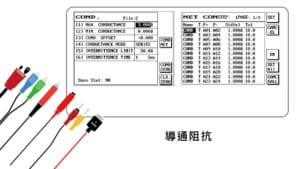

導通阻抗測試目的
測試線材連接器接點是否有接觸阻抗性的問題

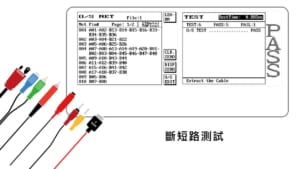

斷短路測試目的
確保線材連接器接點是否有無功能上的問題，MICROTEST線材測試儀支援斷短路端點判定與學習迴路
在安規測試單元提供AC/DC耐壓以及絕緣阻抗測試功能
對線材連接器施加一個穩定高電壓進行測量，目的確保待測物之耐壓能力與絕緣品質，確保線材連接器之迴路接點是否符合絕緣性與耐高壓要求
線材/連接器生產製程中會造成那些安規方面的品質不良？
絕緣不良
電路與電路之間或與其他線路之絕緣阻抗小於產品標準品質規範
耐壓不良
電路之高壓絕緣阻抗小於產品標準品質規範或因絕緣性太差造成漏電流狀況
安規檢測項目中兩大重要指標
絕緣阻抗
測試結果以絕緣阻抗值判定，絕緣阻抗是反應絕緣材料性能一項重要電氣參數，絕緣阻抗不良可能會發生高壓下待測物被擊穿或漏電流
電弧偵測
許多車用或軍工應用的精密產品是不容許高壓下出現電弧的現象
功能特點
- 內四線式測量導通技術
- AC耐壓最高1000V
- DC耐壓最高1500V
- 測試點數支援64P / 128P / 256P
- 絕緣阻抗測試
- 導通阻抗 / 斷短路 / 快速瞬斷測試
- 支援BAR Code掃描
- 支援連結列表機列印數據
- 可選購PC Link軟體
- 支援多組產品測試
Application 應用
量測線材連接器的導通阻抗、耐壓絕緣
規格
| Model | 8740FA |
| AC Hi pot Test | 100V-1000V |
| DC Hi pot Test | 50V-1500V |
| Test Pin | 128/256/512 |
| Model | 8740NA |
| AC Hi pot Test | 100V-700V |
| DC Hi pot Test | 50V-1000V |
| Test Pin | 128/256/512 |
| Model | 8740N |
| AC Hi pot Test | – |
| DC Hi pot Test | 50V-1000V |
| Test Pin | 128/256/512 |
| Model | 8740 |
| Safety Hi pot Test | |
| AC Hipot Leakage Current | 0.01mA -5mA |
| AC Arcing Detection | 0-9 |
| DC Hipot Leakage Current | 0.1µA-1000µA |
| DC Arcing Detection | 0-9 |
| DC Hipot Insulation Resistance | 1MΩ-1.2GΩ |
| Hipot Output Accuracy | ±5% |
| Hipot Measurement Accuracy | ±5% |
| Rated Output | 5Vdc |
| Hipot Measurement Time | 0.01秒 – 60秒 |
| Wire Specifications | Maximum allowable capacitance 5μF |
| Low Voltage Electrical Test | |
| Measuring Mode | 2-Wire Test |
| Conductance | 100mΩ-52Ω |
| Intermittence Conductance | 100mΩ-52Ω |
| O/S
Intermittence O/S Quick Intermittence open circuit |
1kΩ-100kΩ |
| O/S Determinal Judge | ● |
| Single-Side Test | ● |
| Component test | |
| Resistance | Measurement Range
100mΩ-2MΩ |
| Level Signal
2.4V (Fixed) |
|
| Current Signal
35mA |
|
| Capacitance | Measurement Range
10pF-3µF |
| Level Signal
1.2V (Fixed) |
|
| Frequency Signal
AUTO Gear (Fixed) 48Hz/480Hz/4.8kHz/48kHz |
|
| Diode | Measurement Range
0-6.8V |
| Other Function | |
| Advanced Functions | Programmable continuous test / Pin
search/Auto-diagnosis |
| Test Scan Mode | Auto, Manual, External Trigger |
| Measurement Signal | Low Voltage Measurement Signal |
| Panel | System/Rapid /Edit / Function |
| Indicator | Pass/Fail HV LED red-green indicator
lights / Screen Display /Sound |
| Operation | Manual, Auto, Remote Control |
| Built-in Storage | Number of test file up to 500 sets |
| Power Supply | Fixed Voltage
115/230 Vac ±10% |
| Frequency
60/50Hz |
|
| Power consumption | 300VA |
| Environment | Temperature
0℃-40℃ |
| Humidity
RH≦75% |
|
| Display | 320*240 dot-matrix display |
| Dimension
(W*H*D) & Weight |
128PIN
435x145x406 mm 8.44Kg |
| 256PIN
435x145x406 mm 9.3Kg |
|
| 512PIN
435x190x406 mm 14Kg |
|
| Interface | RS-232, USB Host, Print, Remote |
