項目清單
產品資訊

用於測量片狀電容器等的絕緣電阻
12604連接到5450/5451,以測量芯片電容器等的絕緣電阻。 帶鑷子形探頭的小尖頭,產品也可以輕鬆,高效地進行測量。 特別是,A08076(另售)是一種鐵氟龍絕緣的測量,可以在感應噪聲影響較小的情況下進行測量。它是用於屏蔽板的。 也可以與8252連接。
鑷子探針
Model:
12604
Maker:
ADCMT
- 配件

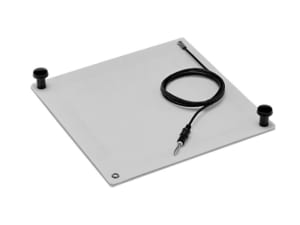

A08076 測量用屏蔽板
規格
使用環境範圍 | 溫度+ 5°C〜+ 35°C,濕度70%RH或更低,無結露 | |
存放環境範圍 | 溫度0°C〜+ 40°C,濕度70%RH以下,無結露 | |
連接器 | 輸入三軸連接器,施加電壓,香蕉片 | |
工作電壓 | DC100 V | |
適用樣品 | 電極之間的距離1.0~8.0 mm的芯片零件 | |
外形尺寸 | 大約28(寬度)x 13(高度)x 140(深度)mm,連接電纜(長度)大約1 m | |
重量 | 200 g以下 |
耐壓 | 絕緣(Ω) | |
INPUT信號線 - V SOURCE之間 | 1.1 kV | 1014以上 |
INPUT信號線 - 外殼之間 | 1.1 kV | 1014以上 |
V SOURCE - 外殼之間 | 1.1 kV | 109以上 |
