TENSILON universal testing machine, Max Load Capacity 2.5kN to 300kN. Class 0.5 (RTH series) and 1(RTI series) line-up.
Load cells are made “In-house”, and it provides great reliability.
Equipped with superior functions and low noise (40% reduction compared to our company's products)
Tensilon universal testing machine
Model:
RTH Series/RTI Series
Maker:
A&D
Feature
・Lineup of high-precision and standard-precision models
・Widened velocity range of 0.0001~1500mm/min
・Increased measurement efficiency thanks to faster return speed. Return velocity 1650mm/min
・Achieves high-speed sampling of 0.2msec and does not miss instantaneous load changes
・Low noise: Consideration for testing environment
Purpose
TACT
Optimized data-processing-system TACT for Tensilon. Achieves 1st-in-the-world class high-speed sampling of 0.2msec. Maximize the performance of RTH Series/RTI Series.
In addition to operating as a tester, TACT Series offers superior data analysis, computation, and data saving functions.
Display
Independent load and displacement digital display. Fixing system using a magnet enables mounting at a free position on the tester. Since the display position is free, it is very convenient when mounting jig(fixture) of the sample and testing.
Commander
Commander i.e. hand-held tester controller. The color and the size of operation buttons are determined by examining the ergonomics, and pursue the usability. The reputed jog dial is placed on the side, and the rotating direction of the dial matches the vertical moving direction of the tester, allowing you to operate it sensuously. Commander can be mounted freely anywhere in the upper, lower, left, and right of the tester.

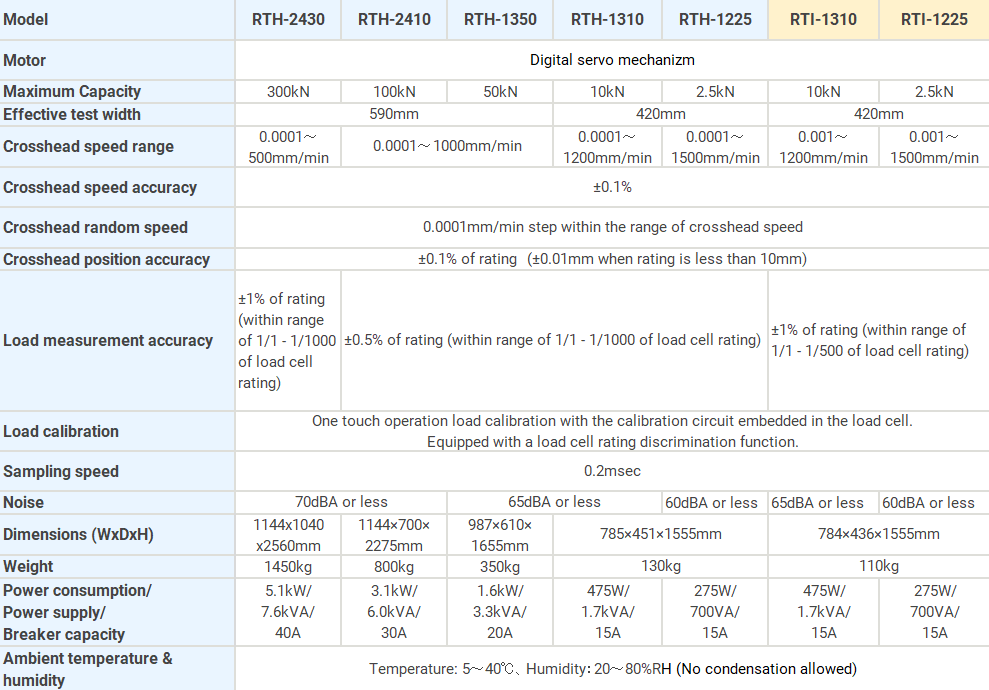

Line-up
To view the pdf files, the Adobe Reader from Adobe Systems is required.
