High Pass Filter (For Spectrum Analyzer Protection)
This product is a high-pass filter to protect the input stage MIX and RF AMP of a spectrum analyzer by attenuating the transient voltage generated when switching the measurement line of a pseudo power supply circuit network when measuring the disturbance voltage leaking into the power supply line using a spectrum analyzer. When measuring the disturbance voltage, insert this filter into the [RF OUTPUT] side of the pseudo power supply network.
When the input level is 0.5 V or higher, a diode for splitter is recommended.
High Pass Filter (For Spectrum Analyzer Protection)
Model:
TFL-007(D)・009(D)
Maker:
Kyoritsu Technology Corporation
Feature
Specification | TFL-007・007D ※2 | TFL-009・009D ※3 |
Wide area filter | passband 9kHz to 30MHz | passband 150kHz to 30MHz |

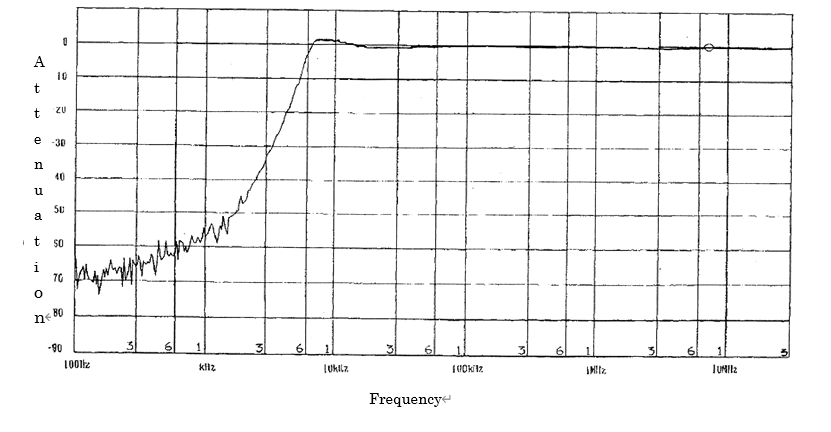

Cutoff frequency ※1 | 7kHz | 150kHz |
Impedance | 50Ω(nominal value) | |
Input connector | Input side BNC-P
Output side BNC-R |
|
Size / Weight | 70(W)x25(H)x25(D)mm, approx.150g |
※1:The cut frequency can be set to the desired value.
※2:TFL-007D is equipped with a diode for high frequency splitter.
※3:TFL-009D is equipped with a diode for high frequency splitter.
