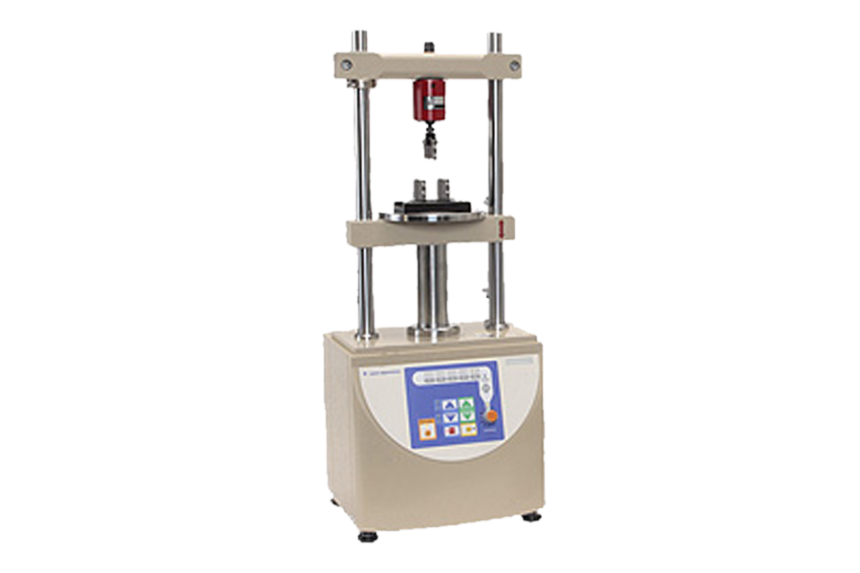

Desktop load tester MODEL-1310VC
A desktop force tester with the table moving up and down.
Compact but large force capacity.
Optional column extension for long workpieces.
Small space.
Desktop load tester MODEL-1310VC
Model:
MODEL-1310VC
Maker:
Aikoh Engineering Co., Ltd.
Examples of use
- Compression/tensile tests
- 3-point bending test
- Peeling test
- Weld strength test
- Connector insertion/withdrawal test
- With standing load test of LCD
Specifications
MODEL-1310VC | |
Max. force | 2kN(200kgf) |
Force accuracy | Depends on the load cell used. |
Force measuring amplifier | MODEL-1016C |
Controller | Built in |
Test speed | 5~125mm/min |
Speed changing | 5 steps or stepless |
Stroke | 150mm |
Distance between test center and column | 125mm |
Table size | φ200 mm, center M10 x 1.5 |
Drive motor | DC brushless motor |
Detector | Rotary encoder, resolution 0.01 mm |
Display accuracy | 0.1mm |
Dimensions | W356×H900×D314mm |
Stand mass | Approx. 41kg |
Amplifier mass | Approx. 5.2kg |
Power supply | Single phase, 100 VAC – 240 VAC, 1A |
Standard set | Tester, force measuring amplifier MODEL-1016C, load cell 1 piece |
Options | Additional load cell, jig/fixture, software, column extension |
