Test Frequency 10Hz-50MHz

The Precision Impedance Analyzer 6632 has seven frequency options(10Hz to 1/3/5/10/20/30/50MHz). The equivalent circuit analysis function supports 7 different parameter models (three-element, four-element), it can help customers model the impedance versus frequency characteristics. 6632 Built-in DC Bias voltage ±12V, it can measurement of piezoelectric element admittance circle, and can measure DC bias characteristic of capacitance value. 6632 can use with DC bias current test system. Support RS-232、GPIB、Handler、LAN、USB Host/Device interfaces, PC connection software capabilities to improve the design and test efficiency significantly.

Impedance Analyzer

Model:

6632

Maker:

MICROTEST

Key Features

Frequency range: DC, 10Hz to 1/3/5/10/20/30MHz/50MHz
Basic accuracy up to ±0.08% (typical ±0.05% )
Automatic Level Control (ALC)
Output impedance 25Ω/100Ω, switchable
Support meter mode and list mode, sweep mode
Equivalent Circuit Analysis
Built-in DC Bias voltage ±12V
Ultra-high measuring speed < 3ms
Open circuit/short circuit/load correction function
Comparator function
BIN classification function
Built-in the Permeability-μr
Built-in the Dielectric constant-εr

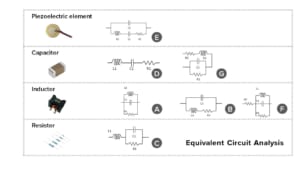

Equivalent Circuit Analysis

To measure high-frequency components, use a 6632 impedance analyzer.

Basic specifications

Download the product specification catalog

Selection

Model	6632-1	6632-3	6632-5	6632-10	6632-20	6632-30	6632-50
Frequency	10Hz-1MHz	10Hz-3MHz	10Hz-5MHz	10Hz-10MHz	10Hz-20MHz	10Hz-30MHz	10Hz-50MHz
Equivalent Circuit Analysis	6632-1S	6632-3S	6632-5S	6632-10S	6632-20S	6632-30S	6632-50S

SPEC

Model	6632
Frequency Range	10Hz-50MHz
Frequency Setting	Continuity
Frequency Resolution	100mHz, 6-bit Frequency Input
Frequency Output Accuracy	±0.01%
Basic Accuracy	±0.08% (typical ±0.05%)
AC Drive Level	Test Signal Voltage Level	10mV – 2Vrms(100Ω) 10mV – 1Vrms(25Ω)
	Voltage Minimum Resolution	1mV
	Accuracy	ALC ON：6％ * Voltage ±2mV ALC OFF：10％ * Voltage ±2mV
	Test Signal Current Level	200µA – 20mArms
	Current Minimum Resolution	10µA
	Accuracy	ALC ON：6％ * Current ± 20µA ALC OFF：10％ * Current ± 20µA
DC Drive Level	1V (fixed)
Output Impedance	25Ω/100Ω (switchable)
DC Bias Voltage	Built-in ±12V (100Hz-50MHz)	External Voltage Bias (±12V/±40V/±600V/±2000V)
DC Bias Current	Option DC Bias Current Source (20A/60A/120A/320A)	External Voltage Bias (100mA)
Measurement Mode	Meter mode, list mode, sweep mode, and optional equivalent circuit analysis function (S model)
Measurement Parameters	\|Z\|、\|Y\|、θ、X、R、G、B、L、D、Q、DCR、C、 ESR、εr 、μr
Test Time (Fastest)	< 3mS

Measurement Parameters

Parameters	Range
\|Z\|	0.000 mΩ to 9999.99 MΩ
R, X	± 0.000 mΩ to 9999.99 MΩ
\|Y\|	0.00000 μS to 999.999 kS
G, B	± 0.00000 μS to 999.999 kS
θRAD	± 0.00000 to 3.14159
θDEG	± 0.000° to 180.000°
Cs, Cp	± 0.00000 pF to 9999.99 F
Ls, Lp	± 0.00 nH to 9999.99 kH
D	0.00000 to 9999.99
Q	0.00 to 9999.99
Δ	± 0.00% to 9999.99%
Rdc	0.00 mΩ to 99.9999 MΩ
εr’ εr”	0 to 100000
μr’ μr”	0 to 100000

System

Measurement Circuit	Series/Parallel
Correction	Open Circuit/Short Circuit/Load correction
Cable Compensation	0 / 0.5 / 1 /2 (m)
BIN	ABS、ΔABS、Δ%、OFF
Comparator	9
List Mode	50 groups of Multi-steps setting (Each group contains up to 15 steps)
Bulit-in Storge	100 sets LCR setting documents, 50 groups of list mode setting
USB Host Storge	LCR setting documents, list mode setting document, BMP graphics, Sweep screen and test result data
Trigger Test	Auto, manual, RS-232, GPIB, Handler
Power Supply	Voltage：90-264Vac
Power Supply	Frequency：47-63Hz
Power consumption	30VA
Environment	Temperature：10℃-40℃
Environment	Humidity：20-90%RH
Dimension	336x147x340 mm (WHD)
Weight	3.95 Kg
Interface	RS-232、Handler、LAN、USB Host、USB Device
Display	Color Screen, 7″ TFT (800*480)
