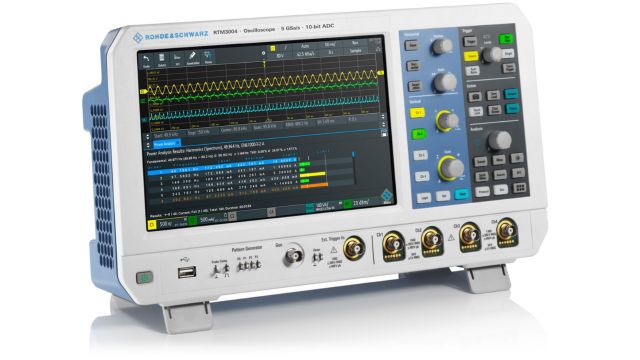

R&S®RTM3000 Oscilloscope Series

Signal analysis: quick results

The customized 10-bit A/D converter provides four times higher vertical resolution than conventional 8-bit oscilloscopes. The increased resolution reveals small signal details that might otherwise be missed and is particularly useful for applications such as switched-mode power supply characterization.

Capture more time at full bandwidth

The R&S®RTM3000 provides 40 Msample memory depth per channel as standard and up to 80 Msample in interleaved mode. This enables longer acquisition times while maintaining high sample rates, making transient analysis easier and more effective.

10.1″ high-resolution capacitive touchscreen with gesture support

The large 10.1-inch touchscreen with 1280 × 800 resolution supports intuitive gesture control, allowing users to quickly navigate menus, zoom waveforms, and adjust measurement settings.

X-in-1 oscilloscope

The instrument combines multiple functions in a single platform, including an oscilloscope, logic analyzer, protocol analyzer, waveform and pattern generator, and digital voltmeter. Dedicated operating modes for mask testing and long-duration acquisitions are also integrated.

Frequency response analysis (Bode plot)

Integrated frequency response analysis simplifies control loop, filter, and amplifier characterization by enabling Bode plot measurements directly on the instrument.

The best choice for power

Optimized for power electronics applications, the R&S®RTM3000 supports detailed analysis of switched-mode power supplies and other power conversion circuits with high measurement accuracy.

Spectrum analysis: identify interactions between time and frequency

Spectrum analysis capabilities help users correlate frequency-domain behavior with time-domain events, making it easier to troubleshoot EMI issues and signal integrity problems.

Protocol analysis: efficiently debug serial buses

Integrated serial bus protocol analysis accelerates embedded system debugging and helps quickly identify communication errors.

The right probe for the best measurement

The Rohde & Schwarz probe interface supports the company’s complete range of probes, providing optimal signal fidelity and measurement accuracy for a wide variety of applications.
