- RION VIBRATION ANALYZER VA-14 [ NEW ]
The VA-14 is a handheld vibration analyzer that can perform 1-channel FFT analysis
Measurement functions include a vibration meter function, a time waveform function, and a frequency analysis function. Equipped with a USB port and a LAN port, it can be used as a stationary measuring instrument without direct operation on-site by connecting to an external communication device, or can be incorporated into a system. Further enhanced vibration measurements are possible using two types of optional programs.
VIBRATION ANALYZER
Model:
VA-14
Maker:
RION
“Beyond Trust to a New Frontier in Measurement”
Previous model VA-12 has been trusted for many years as the one and only 1ch vibration analyzer. With the VA-14, we have realized one by one the voices of our customers who wish that the VA-12 had more functions like this. RION’s attitude of valuing the opinions of customers has made it possible to perform vibration analysis at a higher level.
Feature
- Lightweight and easy to hold with one hand.

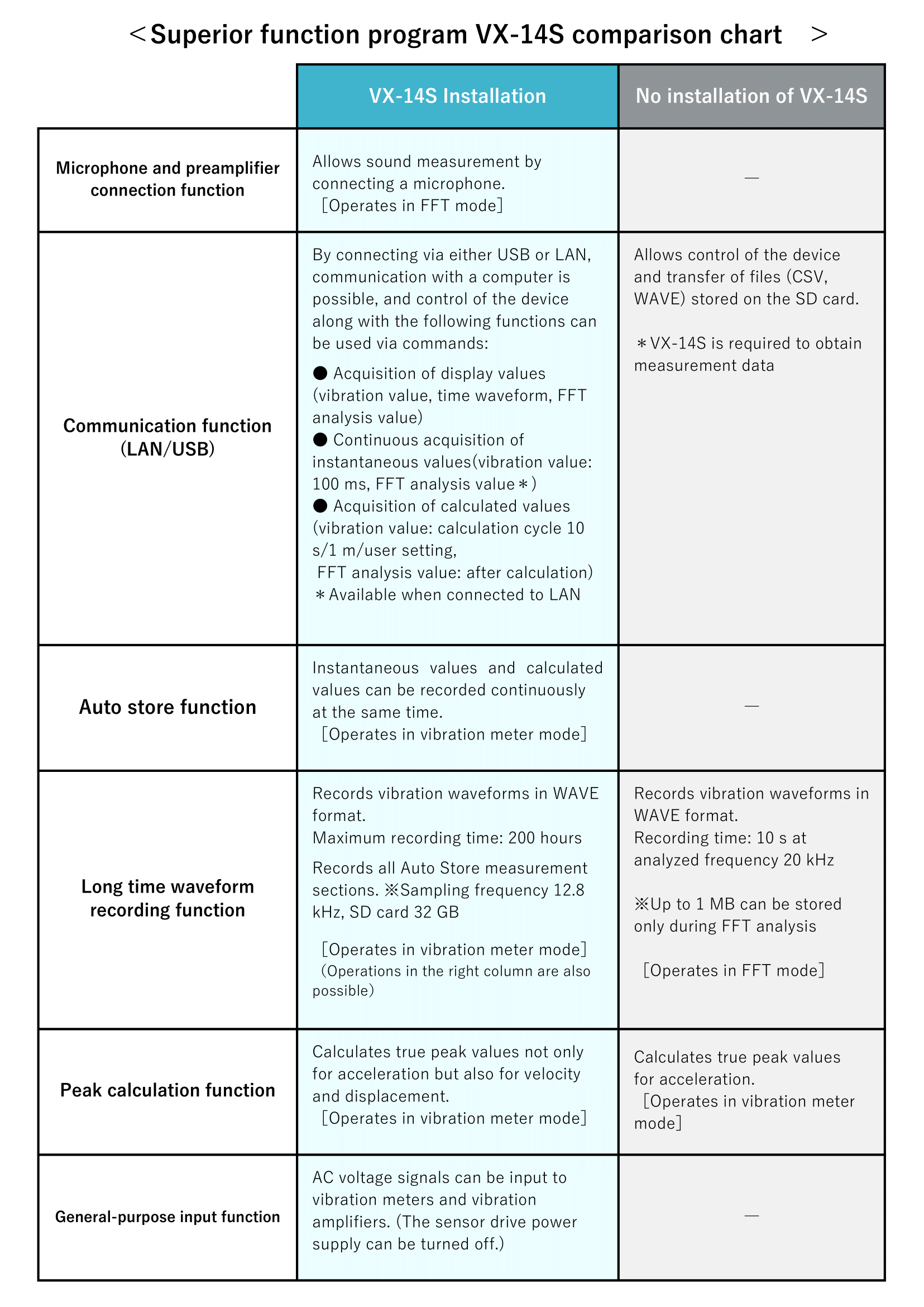

- Adding optional functions expands the range of measurements.
- LAN terminal USB Type-C connector for controlling the device and transferring files stored on the SD card.
- Power supply via USB Type-C connector.
- Simultaneous measurement of acceleration, velocity, displacement, and acceleration crest factor.
- Filters (HPF, LPF) can be set for acceleration, velocity, and displacement respectively.
- In FFT mode, “TOP10” displays the top 10 spectrum data and “PEAK10” displays the top peak data.
- Imperial units (G, inch/s, mils).

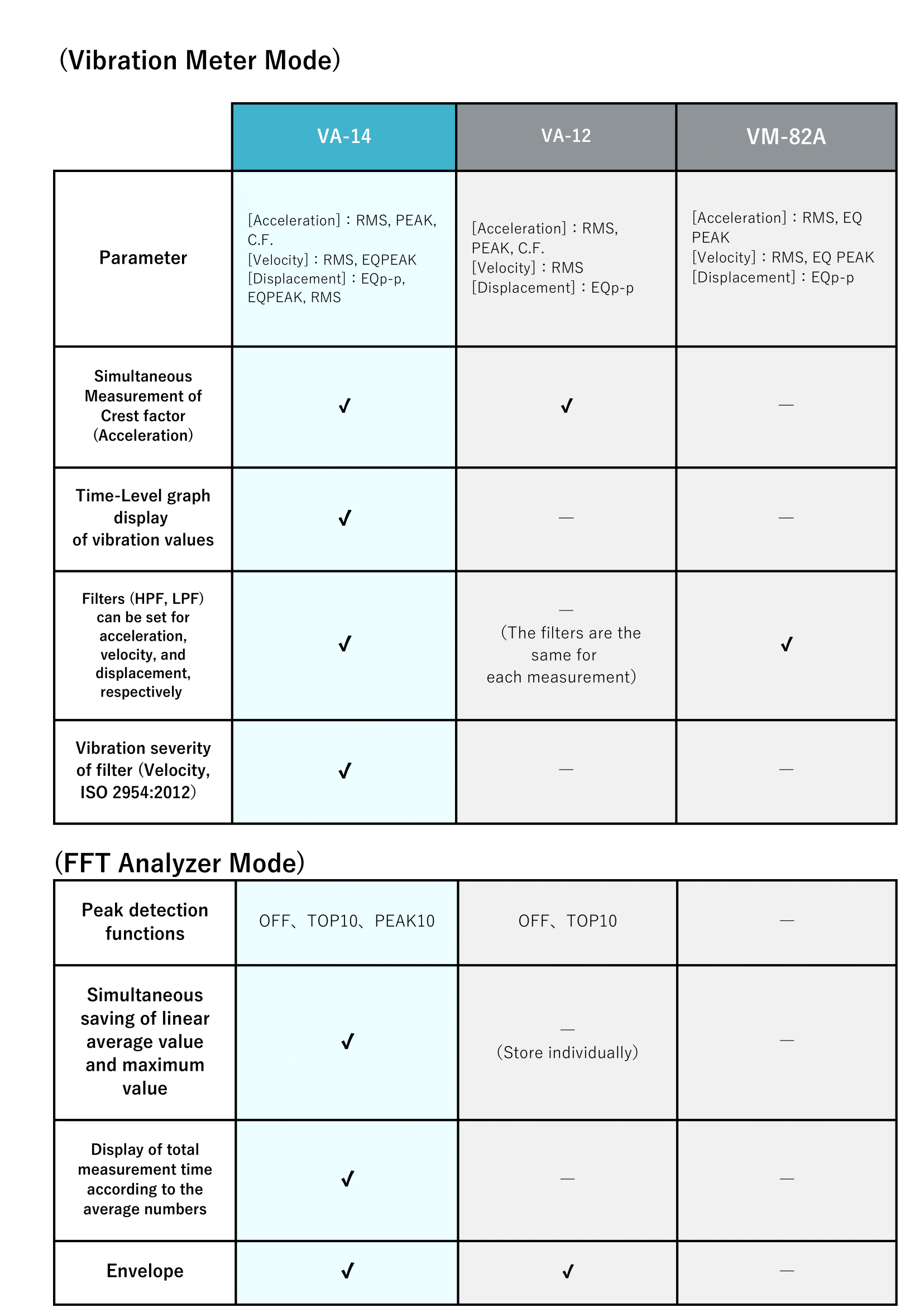

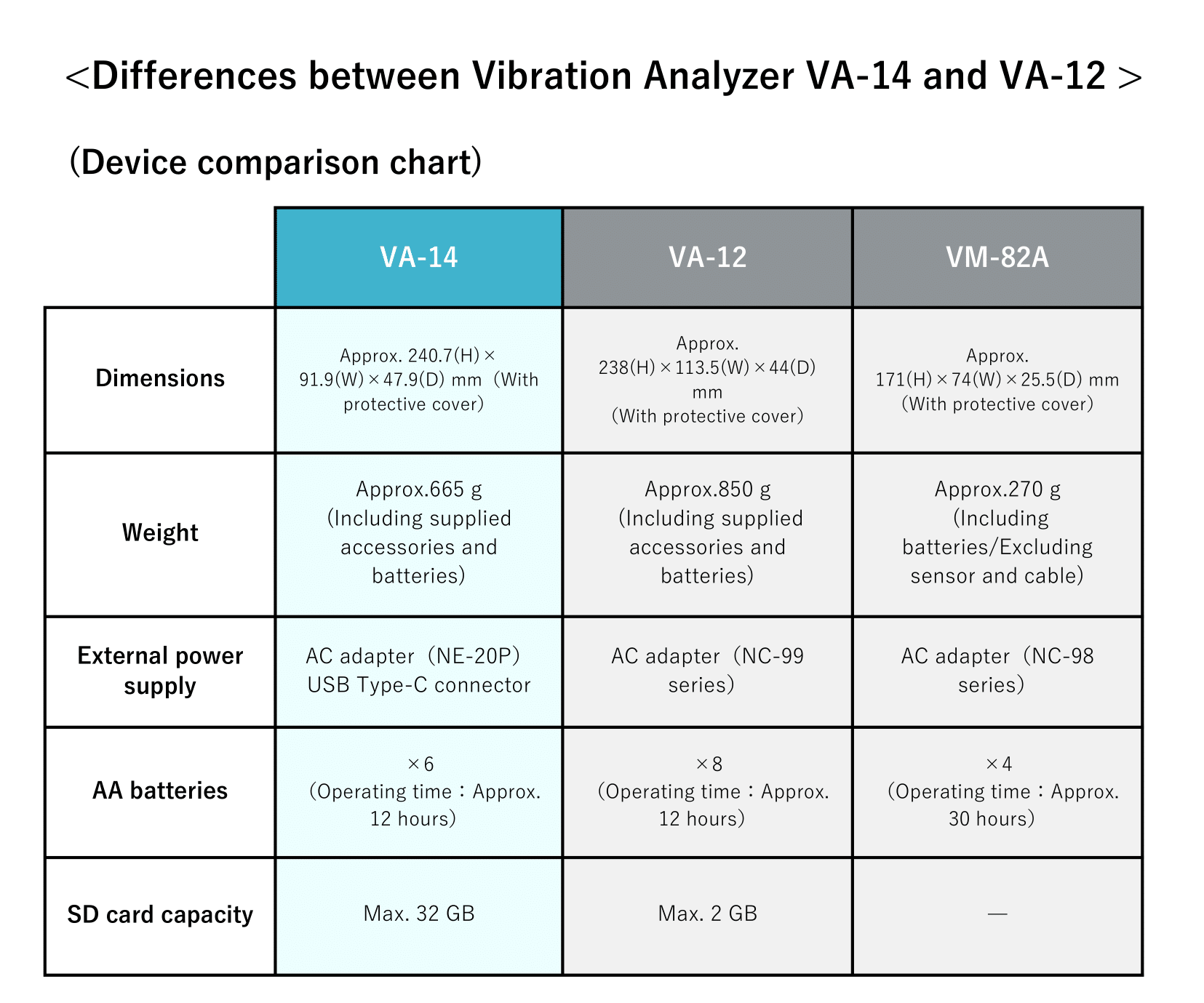

Comparison Table
To view the pdf files, the Adobe Reader from Adobe Systems is required.
