The MM-200 is Nikon's most compact, high precision, measuring microscope designed for accurate component feature measurement against a plan. It is a low-weight, manual measuring system combining repeatability with easy to-use functionality.
Measuring Microscopes
Model:
MM-200 Series
Maker:
Nikon Metrology Inc.
The MM-200 has an ergonomic and intelligent design with two optical systems, a monocular eyepiece head or a video imaging head.
The MM-200 monocular head system provides a high-end toolmaker’s microscope solution for all industrial shop floor and QA activities.
The MM-200 video-imaging head system provides an excellent entry level video metrology solution for all industrial production process verification and QA activities.

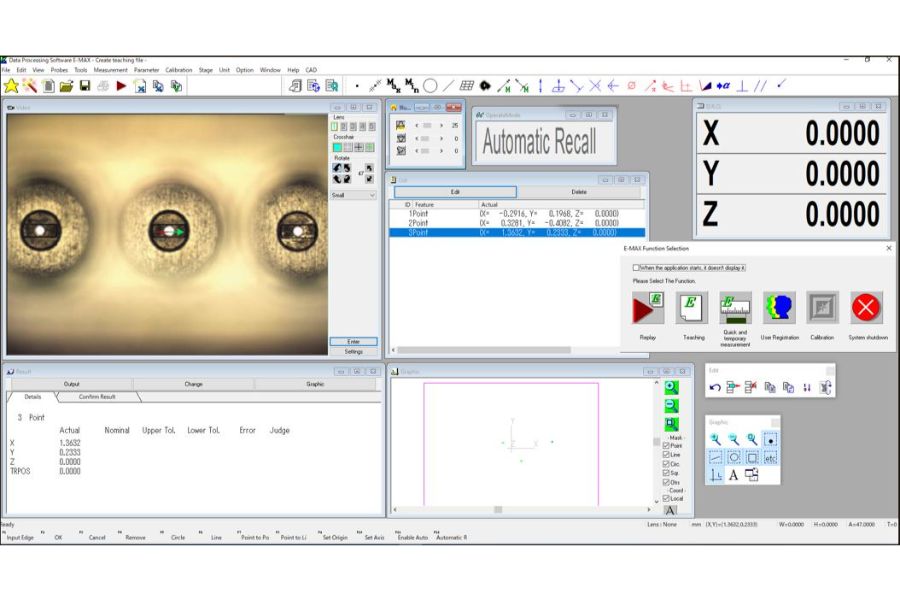

The MM-200’s backpack digital interface unit links rapidly by USB cable to a personal computer with Nikon’s E-Max software.

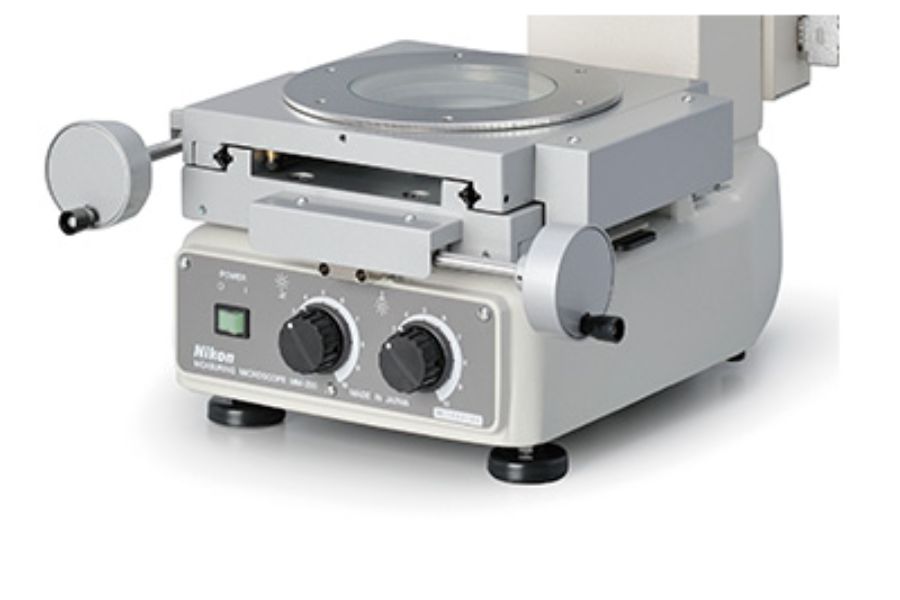

The MM-200 provides very high performance specifications assembled into an ergonomic, compact unit. A 2″x2″ stage is integrated with the main body as standard.
Nikon’s lenses offer superior performance with very long working distances, excellent high-contrast flat images and reduced measuring errors due to the telecentric optical design.
| Type | Monocular Eyepiece Tube Type | C-Mount Video Head Type |
| Optical Head | MM-200 Monocular Optical Head | C-mount video head for MM-200 |
| XYZ Stroke | 50x 50 x110mm | |
| Stage Accuracy | 2.5 + L50 pm (with LEC), 3 + L50 pm (L= measurement length in mm)u200b | |
| Scale Resolution | 0.01 / 0.1(default) / 1 / 10 pm | |
| Max. Loading Weight | 2 kg for guaranteed accuracy, 5 kg for operation | |
| Magnification Accuracy | 0.1 % | |
| Objective Lenses (WO) | Standard: 3x (75.5 mm) Optional: 1x (79 mm), 5x (64 mm), 10x (48 mm) |
|
| Light Sources | Standard: diascopic/episcopic (white LED) | |
| Dimensions & Weight | 316 x 455 x 533 mm (W x D x H). 40 kg | |
| Input Voltage Range | 100 – 240 V (Max. 1.8 A) | |
