MINEBEA Molding Pressure Conversion Unit MPC-201B-25

Mold Cavity Pressure Measurement System for Injection Molding Machines

No need to rely on gusswork or experience!

Quantifies molding quality :
- Mold production: Supports optimization of injecting conditions.
- Mass-production molding: Defect assessment and traceability (preassure waveform records).
- Features multipurpose data processing software as standard.
- High-precision, low-cost sensors using Minebea strain gages.
- Long service life and high sensitivity for accurate measurements, even under low preassure.

Molding Pressure Conversion Unit

Model:

MPC-201B-25

Maker:

MinebeaMitsumi Inc.

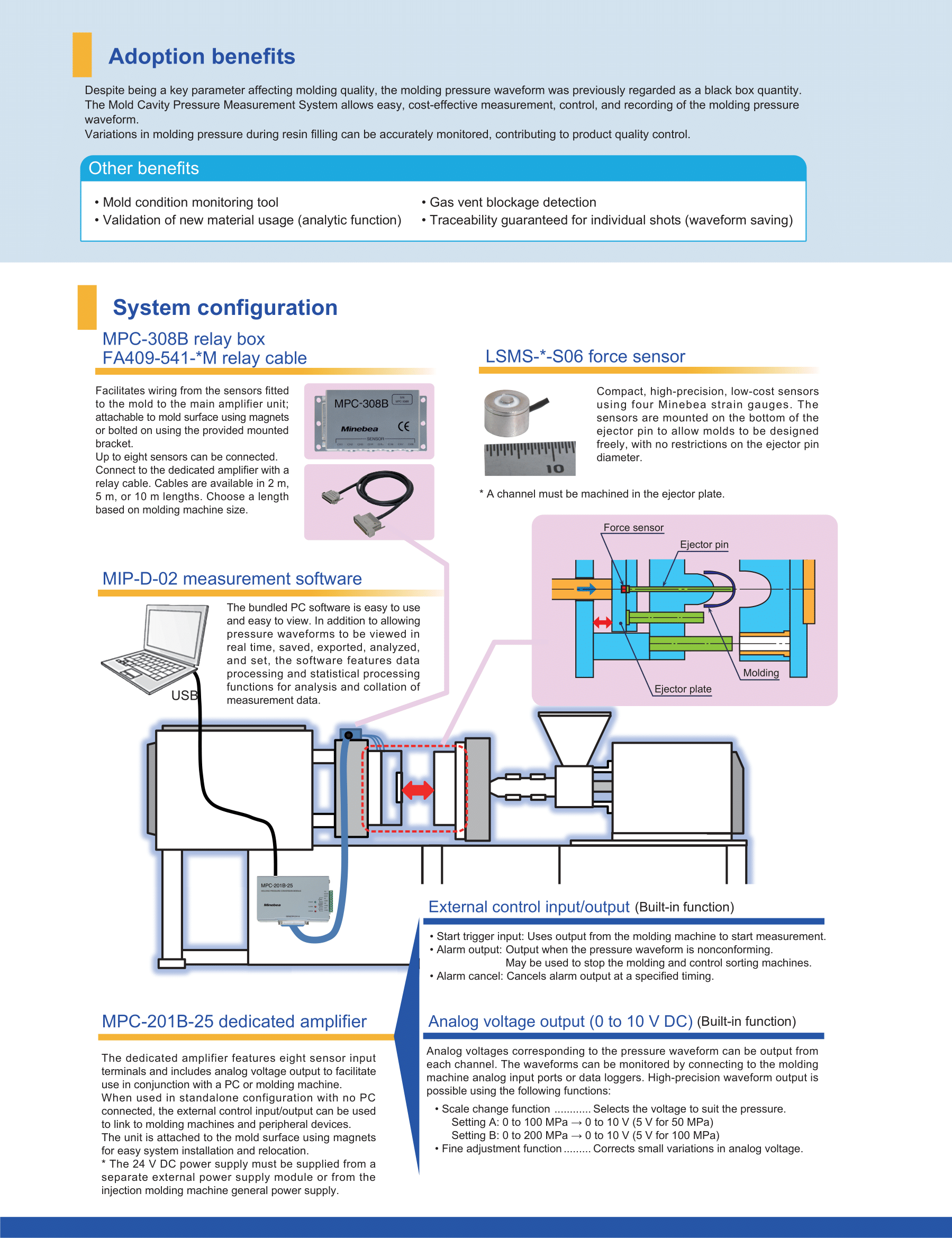

System Configuration

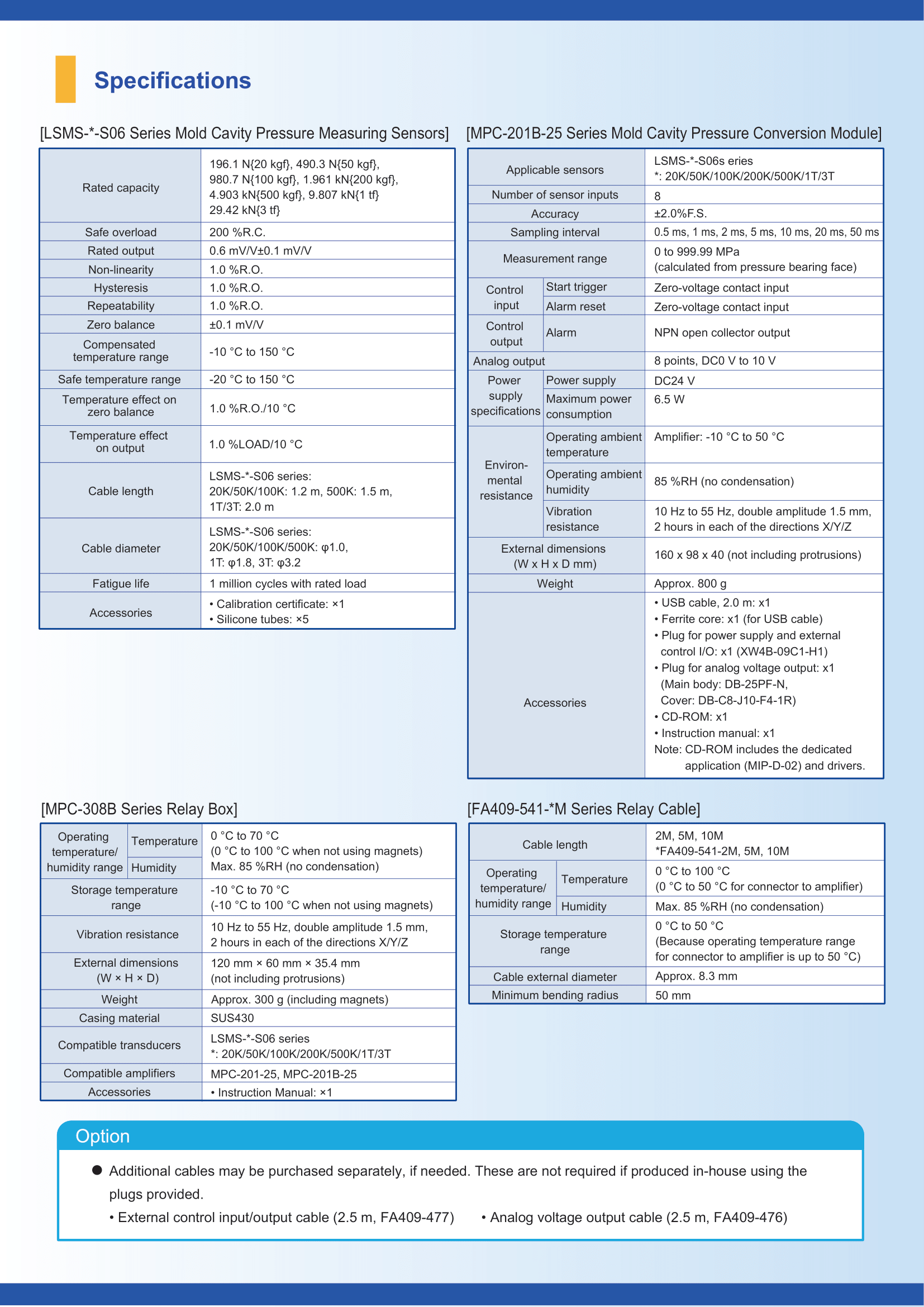

Specifications
