Micronix Simple Anechoic Chamber MY5700

Easy construction of an anechoic chamber.

A simple electromagnetic anechoic chamber that can be widely used for 5G OTA, radio law measures, EMC tests, etc.

This electromagnetic wave shield tent type simple anechoic box can easily and inexpensively construct an anechoic chamber like a small electromagnetic anechoic box.
Especially for radio law countermeasures, simple EMC test, OTA test (protocol, function, interoperability test, etc.), it is suitable for cases where ultra-high accuracy RF characteristic test and antenna evaluation are not performed. It is the best product for the needs such as not needing a full-scale electromagnetic anechoic chamber but wanting a simple electromagnetic anechoic chamber.

Simple anechoic chamber MY5700

Maker:

MICRONIX Corporation

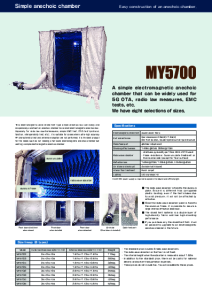

Download Materials

Feature

  • The radio wave absorber is fixed to the aluminum plate. Since it is different from corrugated plastic bonding, even if the tent shakes due to wind pressure, it will not be affected by reflection.
  • Since the radio wave absorber panel is fixed to the aluminum frame, it is possible to secure a large internal effective dimension.
  • The shield tent material is a double layer of high-density fabric and has high shielding performance.
  • If you purchase only the shield tent first, it will be possible to upgrade to an electromagnetic anechoic chamber in the future.

Spesification

Electromagnetic shield tent double-woven fabric
Exit and entrance Door dimensions:0.9m(W)×1.6m(H)
One front location、Double-layered curtain type structure
Cable feed port φ50mm×4(optional)
Shielding effectiveness 1-6GHz@60dB
28GHz@70dB
Radio wave absorber
  • Urethane pyramid type:10cm MYA-V010 used
  • Flame resistance:Aluminum plate treatment on the reverse side (except for floor surface)
Reflection loss 1.4GHz@20dB
1.9GHz@30dB
>3.5GHz@40dB
Air intake and exhaust Available (with blower)
Interior floor treatment Punch carpet
Lighting LED clip lamps×4

※AC100V power supply is required to operate the blower and LED clip light.
