Equipped with an easy-to-read color LCD AC power supply aiming for the lightest weight in the industry
The 8500 series (former EAL series) is a lightweight and compact single-phase AC power supply with a 2U height of 3kVA (15kg) and a 4U size of 6kVA (28kg). Equipped with DC output mode (420V) as standard, USB and LAN interfaces, and built-in list mode function convenient for setting start and stop phase angle, momentary interruption test and voltage POP test. You can choose from two models (STD/ADV) with different variations of installed functions according to your application.
AC source 8500 series
Maker:
KEISOKU GIKEN
Feature

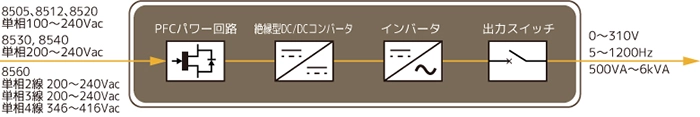

Single block diagram
Function comparison table for each model
type name | 8500 STD series | 8500 ADV Series |
---|---|---|
AC output | 0 to 310 Vrms | 0 to 310 Vrms |
DC output | 0~420V | 0~420V |
frequency | 5~1200Hz | 5~1200Hz |
AC+DC | – | 〇 |
Triangle wave/Square wave/Clip waveform | – | 〇 |
number of files x number of memories | 10×100 | 100×100 |
program mode | list | step/list/pulse |
transient mode | 〇 | 〇 |
Output phase angle setting | 〇 | 〇 |
remote sense | – | 〇 |
Interface (standard) | USB/LAN/PLC/ANALOG | USB/LAN/PLC/ANALOG |
Interface (optional) | RS-232C or GP-IB | RS-232C or GP-IB |
Synchronous output signal | ON/OFF only | ON/OFF/Strat/End/Both |

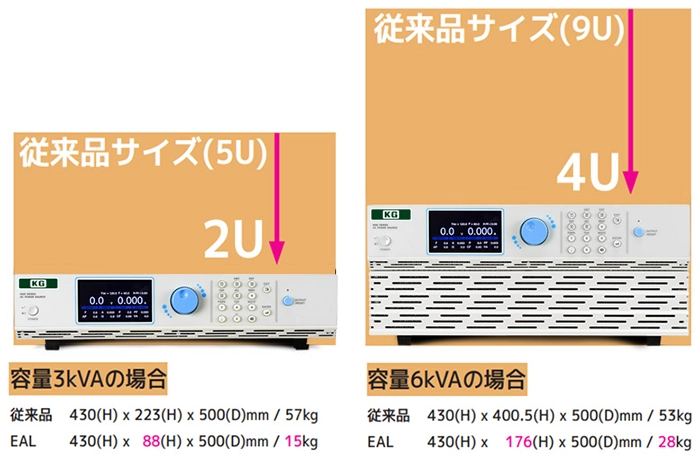

Size and weight comparison with conventional products
Compared to our conventional products, the height and weight of the housing are both less than half, making it a compact size. It is easy to install and move, and is effective when used in combination with existing equipment.
Improved operability compared to conventional products
The large 4.3-inch LCD display, flexible operability of the large rotary knob, and numeric keypad make settings more efficient. Provides better usability. Compared to our conventional products, the operability has been greatly improved.
Ramp-up function and input phase angle setting are provided as standard equipment.
It has an adjustable ramp-up time setting when the output is ON, allowing the voltage to rise without overloading (starting current) during motor starting operation. It is also possible to set the phase for output.
rich interface
In addition to PC-based communication control, it supports analog control of 0 to 10Vdc control. Voltage and frequency can be controlled from PLC.
Conforms to EMC standard EN61326-1
In addition to safety standard IEC610101, it complies with EMC standard EN61326-1, which is a requirement for equipment used in measurement, control and laboratory environments.
Top-class silent characteristics
Uses a low-noise fan with excellent durability. At rated output, it is a maximum of 55dB and quietness of the top class.
Supports a wide output variable range
Supports output voltages from 0 to 310 V and frequencies from 5 to 1200 Hz. It can be used in a wide range of situations, from white goods such as air conditioners, washing machines, refrigerators, and vacuum cleaners to component evaluation of aircraft power supplies and motors.
DC output function
With the DC output function, it can be used as a DC power supply of up to 420V. As well as AC input equipment. It can also be used for testing DC input devices.
Includes EAB and 6600 series command compatibility mode
Equipped with a command compatibility mode to take advantage of the control software assets of the EAB series and 6600 series. Easy to replace with existing equipment. * In compatible mode, setting voltage and frequency from the front panel is prohibited.
Inrush current supply up to 1000msec (up to 4 times the specification)
In addition to inrush current, short-circuit current output assuming output short-circuit is possible within 1000msec.
Overcurrent foldback function
A large starting current temporarily flows through motors, compressors, etc. If this starting current activates the protection circuit of the AC power supply, the test cannot be performed. With the overcurrent foldback function developed to avoid this, you can use it safely for testing motors and compressors. (Response time <1.4s)
Supports waveform output modes other than sine wave (8500 ADV model)
In addition to sine waves, it supports a wide range of output modes including triangle waves, square waves, and clipped sine waves.
Supports AC+DC waveform output mode (8500 ADV model)
Supports AC+DC waveform output mode superimposed on DC bias voltage. Supports complex simulation waveform requirements.
Supports step and pulse modes in addition to list mode (8500 ADV model)
In addition to the list mode, it has a built-in step mode in which frequency and voltage can be adjusted and repeatedly varied, and a pulse mode in which multiple voltages can be set, enabling more complex waveform simulations.
Equipped with synchronous signal (SYNC) output function (8500 ADV model)
In addition to ON / OFF, it generates a 5V sync signal as an output signal when START / END / BOTH / EVENT occurs. Ideal for waveform observation with an oscilloscope.
Equipped with remote sense function (8500 ADV model)
Equipped with a remote sense function that can correct the voltage drop when a large current is applied. Effective when the machine is far from the load.
Specification
Type name | 8505 | 8512 | 8520 | 8530 | 8540 | 8560 | ||
---|---|---|---|---|---|---|---|---|
AC output (AC effective value) | ||||||||
phase / number of wires | Single-phase 2-wire | |||||||
Rating | output voltage | 0-310V | ||||||
Output current *1 | 0-155V | 5A @ 100V | 12.5A @ 100V | 20A @ 100V | 30A @ 100V | 40A @ 100V | 60A @ 100V | |
0-310V | 2.5A @ 200V | 6.25A @ 200V | 10A @ 200V | 15A @ 200V | 20A @ 200V | 30A @ 200V | ||
output power | 500 VA | 1250 VA | 2000 VA | 3000VA | 4000VA | 6000VA | ||
AC voltage | Setting range | 0 to 310 V, 155/310 V autoranging | ||||||
Setting resolution | 0.1V | |||||||
Setting accuracy | ±(0.2% of setting +3 counts) | ±(0.2% of setting +6 counts) | ||||||
Input power fluctuation | ±0.1V | |||||||
Load fluctuation *2 | ±0.2V, | |||||||
frequency | Setting range | DC, 5-1200 Hz full range adjustment | ||||||
Setting resolution | 0.1 Hz at 0.0 to 999.9 Hz 1 Hz at 1000 to 1200 Hz |
|||||||
Setting accuracy *3 | ±0.03% of setting(≧15Hz) ±0.3% of setting( |
|||||||
THD (Total Harmonic Distortion) *4 | ≤0.3 % @ 50 / 60 Hz (all resistive load) ≤1.1 % @ 5 – 1000 Hz (all resistive load) ≤1.2 % @ 1001 / 1200 Hz (all resistive load) |
|||||||
crest factor | ≥ 3 | ≥ 3 | ≥ 3 | ≧2.5 | ≥ 3 | ≧2.5 | ||
Inrush current (peak) | Four | Four | Four | 3 | Four | 3 | ||
Response time (Tr/Tf) *5 | 275-400 usec (Typical) | |||||||
DC output | ||||||||
Rating | output voltage | 0-420V | ||||||
Output current *1 | 0-210V | 3.0A | 7.5A | 12.0A | 18.0A | 24.0A | 36.0A | |
0-420V | 1.5A | 3.75A | 6.0A | 9.0A | 12.0A | 18.0A | ||
output power | 300W | 750W | 1200W | 1800W | 2400W | 3600W | ||
DC voltage | Setting range | 0-420 V, 210/420 V autoranging | ||||||
Setting resolution | 0.1V | |||||||
Setting accuracy | ±(0.2% of setting +3 counts) | ±(0.2% of setting +6 counts) | ||||||
Load fluctuation *2 | ±0.2V, | |||||||
Ripple noise (rms) *6 | ||||||||
Ripple noise (pp) *6 | ||||||||
Response time (Tr/Tf) *5 | 275-400 usec (Typical) | |||||||
Measurement function (rms value for AC) | ||||||||
AC voltage (effective value) |
range | 0 to 310 V, 155/310 V autoranging | ||||||
Measurement resolution | 0.1V | |||||||
Measurement accuracy | ±(0.2 % of reading +3 counts) at voltage > 5 V | ±(0.2 % of reading +6 counts) at voltage > 5 V |
||||||
DC voltage | range | 0-420V, 210/420V autoranging | ||||||
Measurement resolution | 0.1V | |||||||
Measurement accuracy | ±(0.2 % of reading +3 counts) at voltage > 5 V | ±(0.2 % of reading +6 counts) at voltage > 5 V |
||||||
AC current/ DC current *7 |
range | L. | 0.050 to 1.200A | 0.050 to 5.000A | – | – | – | |
H. | 1.00 to 6.25A | 4.00 to 15.62A | 4.00 to 25.00A | 0.10 to 37.50A | 0.10 to 50.00A | 0.10 to 75.00A | ||
Measurement resolution | L. | 0.001A | – | – | – | |||
H. | 0.01A | |||||||
Measurement accuracy | L. | ±(1% of reading +10 counts) at CF | – | – | – | |||
H. | ±(0.5% of reading +8 counts) | ±(0.5% of reading +12 counts) | ||||||
frequency | range | 0.0-1200Hz | ||||||
resolution | 0.1Hz / 1Hz | |||||||
Accuracy | ±0.1Hz @ 5-999.9Hz. ±1Hz @ 1000-1200Hz |
|||||||
AC active power/ DC power *8 |
range | L. | 0.0 to 75.0W | 0.0 to 300.0W | – | – | – | |
H. | 60-625W | 240-1563W | 240-2500W | 0-3750W | 0-5000W | 0-7500W | ||
Measurement resolution | L. | 0.1W | – | – | – | |||
H. | 1W | |||||||
Measurement accuracy | L. | ± (1% of reading +10 counts) at PF ≥ 0.35 and voltage > 5 V |
± (2% of reading +15 counts) at PF ≥ 0.35 and voltage >5 V |
– | – | – | ||
H. | ± (1% of reading +5 counts) at PF ≥ 0.35 and voltage > 5 V |
± (1% of reading +10 counts) at PF ≥ 0.35 and voltage >5 V |
± (1% of reading +20 counts) at PF ≥ 0.35 and voltage >5 V |
|||||
Power factor | Measurement range | 0.000 to 1.000 | ||||||
Measurement resolution | 0.001 | |||||||
Measurement accuracy | Display W/VA in 3 significant digits | |||||||
AC apparent power | Measuring range | L. | 0.0 to 75.0VA | 0.0 to 300.0VA | – | – | – | |
H. | 60-625VA | 240 to 1563 VA | 240-2500VA | 0 to 3750 VA | 0-5000VA | 0 to 7500VA | ||
Measurement resolution | L. | 0.1VA | – | – | – | |||
H. | 1 VA | |||||||
a formula | V×A, calculated value | |||||||
AC reactive power | range | 0-155V | 0.0 to 75.0VAR | 0.0 to 300.0VAR | – | – | – | |
0-310V | 60-625 VARs | 240-1563 VAR | 240-2500VAR | 0 to 3750 VARs | 0-5000 VARs | 0-7500 VARs | ||
resolution | 0-155V | 0.1 VARs | – | – | – | |||
0-310V | 1VAR | |||||||
a formula | √(VA)2- (W)2) , calculated value | |||||||
peak current | Measurable range | 0.0-20.0 Apk | 0.0-50.0 Apk | 0.0-80.0 Apk | 0.0-120.0 Apk | 0.0-160.0 Apk | 0.0-240.0 Apk | |
Measurement resolution | 0.1A | |||||||
Measurement accuracy | ±(0.5% of reading +8 counts) | ±(0.5% of reading +12 counts) | ||||||
crest factor |
Measurable range | 0-10.00 | ||||||
Measurement resolution | 0.01 | |||||||
a formula | Ap/A | |||||||
protective function
|
||||||||
protection | OCP , OVP , OPP , OTP , LVP , RCP and Fan | |||||||
Other features
|
||||||||
AC output start angle |
Setting range | 0-359° | ||||||
Setting resolution | 1° | |||||||
Overcurrent foldback (*9 ) |
Setting range | 0-155V | 0.05 to 5.00A | 0.05 to 12.50A | 0.05 to 20.00A | 0.1~30.00A | 0.10 to 40.00A | 0.10 to 60.00A |
0-310V | 0.05 to 2.50A | 0.05 to 6.25A | 0.05 to 10.00A | 0.1~15.00A | 0.10 to 20.00A | 0.10 to 30.00A | ||
Setting resolution | 0.01A | |||||||
Setting accuracy | ±(2.0% of setting +4 counts) | |||||||
response time | ||||||||
Time settings | range | 1.0 to 999.9h, 1.0 to 999.9min, 1.0 to 999.9s, 0.2 to 999.9ms | ||||||
resolution | 0.1h, 0.1min, 0.1s, 0.1ms | |||||||
Accuracy | ±(0.1% +0.1h), ±(0.1% +0.1min), ±(0.1% +0.1s), ±(0.1% +0.1ms) | |||||||
unit | Hours (h), minutes (min), seconds (s), milliseconds (ms) | |||||||
Ramp-up function |
Setting range | 0.1 to 999.9s, 0=OFF | ||||||
Setting resolution | 0.1s | |||||||
Setting accuracy | ±(0.1 % + 1 Cycle) Output frequency ≤10 Hz ±(0.1 % + 0.1 sec) Output frequency >10 Hz |
|||||||
memory | 100 x 100 (file x sequence) manual, step, pulse mode, up to 100 files can be created. |
|||||||
graphic display | 4.3 inch TFT LCD | |||||||
Signal output/input
|
||||||||
Status signal output | FAIL STATUS | ON when FAIL occurs | ||||||
PROSESSING STATUS |
On during output | |||||||
Operation display
|
||||||||
OUTPUT ON/OFF | Output on | “OUTPUT” lights up on the front display panel. | ||||||
alarm action | When protective function is activated | A message ( OVP , OCP, etc.) corresponding to the protection function is displayed on the front display panel. | ||||||
When power limit is activated | ” OPP ” is displayed on the front display panel . | |||||||
key lock operation | key lock state | “LOCK” lights up on the front display panel. | ||||||
remote operation | Remote control |
An icon (PC mark) appears on the front display panel. | ||||||
external control
|
||||||||
PLC remote control | Inputs: Output On, Output Off/Reset, Output Verification, Interlock, File Recall M1 to M7, Trigger Outputs: Fail, Test-in-Process |
|||||||
Sync signal external trigger | STDs | ON/OFF, output signal 5 V, BNC type | ||||||
ADV | ON / START / END / BOTH / OFF / EVENT, output signal 5 V, BNC type | |||||||
interface
|
||||||||
USB | hardware | Socket B type | ||||||
terminator | LF when receiving, LF when sending | |||||||
LANs | hardware | IEEE 802.3 | ||||||
RJ-45 | ||||||||
10Base-T/100Base-T | ||||||||
uIP/TCP (Keep-alive signals are not supported) | ||||||||
terminator | LF or EOI when receiving, LF + EOI when transmitting | |||||||
Option interface | Standard equipment: USB, PLC remote, LAN options: GPIB, RS-232 |
|||||||
General specifications
|
||||||||
Power supply | Input rating | Single-phase 2-wire | Single-phase 2-wire or 3-phase 3-wire |
|||||
Input voltage/frequency | 100-240V ± 10% 50/60Hz | 200-240V ± 10% 50/60Hz | Single-phase 2-wire/Three-phase 3-wire: 200 to 240V ±10% 50/60 Hz Three-phase 4-wire: |
|||||
Power factor (at maximum load) *10 | ≥ 0.93 | ≥ 0.97 | ||||||
Efficiency (at maximum load) *11 | ≧74% | ≥81% | ≥84% | ≧83% | ≥84% | ≥84% | ||
input power | at maximum load | 745 | 1630 | 2520 | 3820 | 5030 | 7550 | |
Input current | at maximum load | 10A | 20A | 30A | 22A | 30A | Single-phase 2-wire: 45 A Three-phase 3-wire: 38 A Three-phase 4-wire: 22 A |
|
Input form | terminal block | |||||||
mass | only a main part | 15kg | 28kg | |||||
size | Not including protrusions | W: 430 x H: 88 x D: 500 [mm] | W: 430 x H: 176 x D: 500 [mm] | |||||
Environmental
condition |
Operating environment | indoor use | ||||||
operating temperature | 0°C to 40°C | |||||||
operating humidity | 20 % to 85 % RH or less (no condensation) | |||||||
storage temperature | -20°C to 60°C | |||||||
storage humidity | 20 % to 85 % RH or less (no condensation) | |||||||
Altitude | 2000 m or less | |||||||
cooling method | Forced air cooling by fan | |||||||
Withstand voltage | Between input and output | 2100 VDC for 1 minute between input and output | ||||||
Between input and FG | Between input and FG DC 2100 V for 1 minute | |||||||
insulation resistance | Between input and FG | Between input and FG DC 500 V 30 MΩ or more | ||||||
Compliance standard | TUV EMC / IEC 61362-1 / IEC 61010-1 |
*1 . Operating voltage 100 V / 200 V *2 . If the output frequency exceeds 100 Hz, please refer to the load regulation. Output stabilizes at ±0.5 V for <1 s. *3 . Voltage > 10 V *4 . Maximum distortion is tested at 100-155 V (155 V range) and 200-310 V (310 V range) at maximum current into a resistive load. *5 . 10% to 90% of output voltage *6 . DC to 300 kHz component at voltage = 0 V *7 . 10% to 100% of maximum rated current *8 . 10% to 100% of maximum rated power. If the output current exceeds the current measurement L range, the power measurement accuracy will follow the H range. *9 . Output frequency 30 Hz to 1200 Hz. Response time <7 s for AC output (output frequency 5~29.9Hz). Response time <2 s for DC output. Transient current and power cannot exceed 110% of rated current and rated power when OC_FOLD function is enabled. Otherwise protection occurs. *Ten500/1250/2000 VA: Input voltage is 100 V to 240 V, maximum output power into linear load, sine wave, output frequency 30 Hz to 1200 Hz. 4000 VA: Input voltage 200 V to 240 V, maximum output power into linear load, sine wave, output frequency 30 Hz to 1200 Hz *11. Efficiency is maximum power into linear load, output frequency 5 Hz to 500 Hz. This is the result of testing with an input voltage of 220 Vac. * Accuracy is guaranteed for 6 months after delivery at an ambient temperature of 23°C ±5°C.
