- NOISEKEN ESD Simulator ESS-PS1 & GT-31S
Electrostatic Discharge Simulator (ESS series)
Make your electrostatic testing easier!
This tester simulates the electrostatic discharge phenomenon from a charged human body and evaluates the resistance of electronic devices to electrostatic discharge.
Electrostatic discharge occurs when a charged human body approaches an operation panel, button switches, or housing of electronic devices.
It generates a high-voltage, highfrequency noise which can cause malfunctions in the electronic devices. Electrostatic testing reproducing noise caused by electrostatic discharge is one of the essential immunity tests to prevent troubles caused by noise in the market.
Electrostatic Discharge Simulator
Model:
ESS-PS1 & GT-31S
Maker:
NOISE LABORATORY CO.,LTD.
Greater freedom in testing！

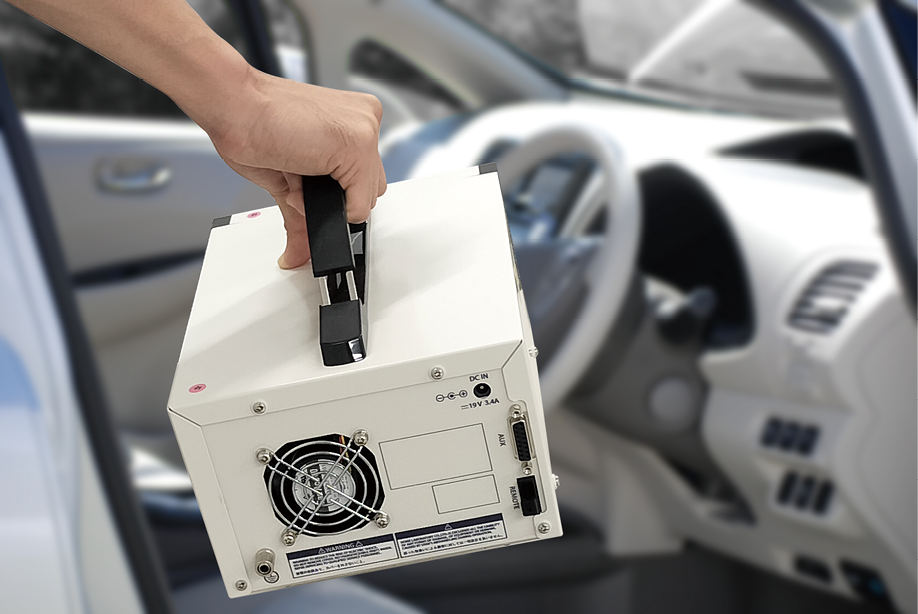

The discharge gun is equipped with a touch panel and is battery-powered for improved portability.
This is effective when testing mobility devices, large medical devices, office equipment, etc.
Easy setting of test conditions

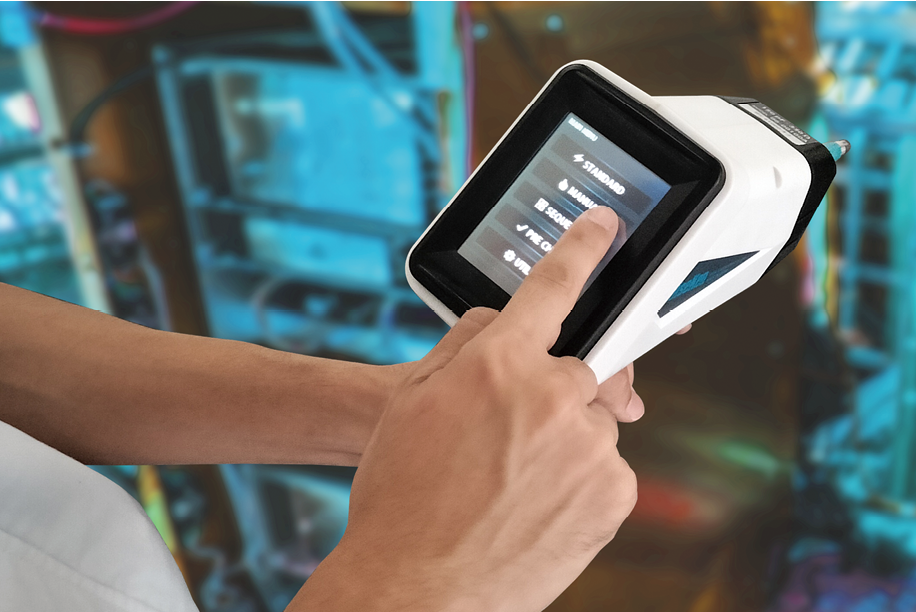

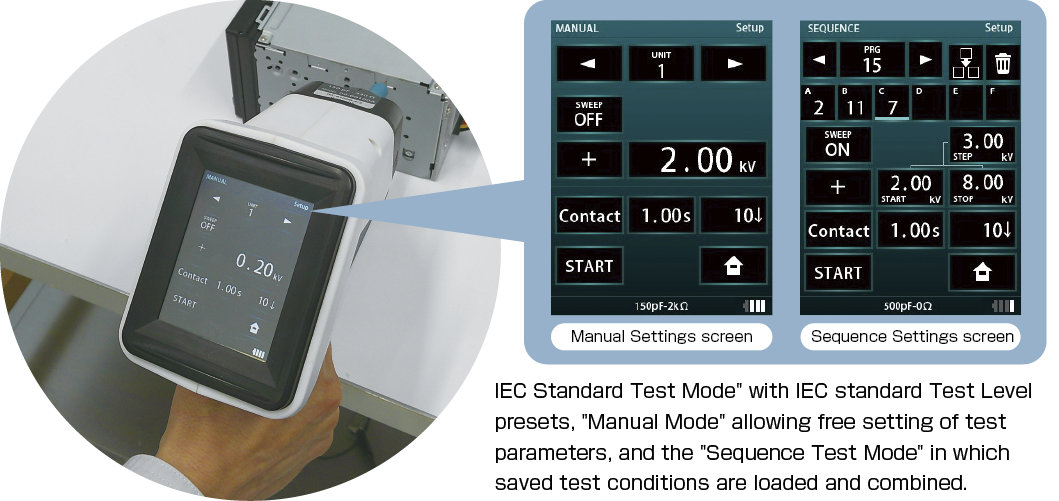

Easy setting of test conditions using the touch panel on the discharge gun.
User-friendly intuitive design with English/Japanese multilanguage support.
More reliable testing

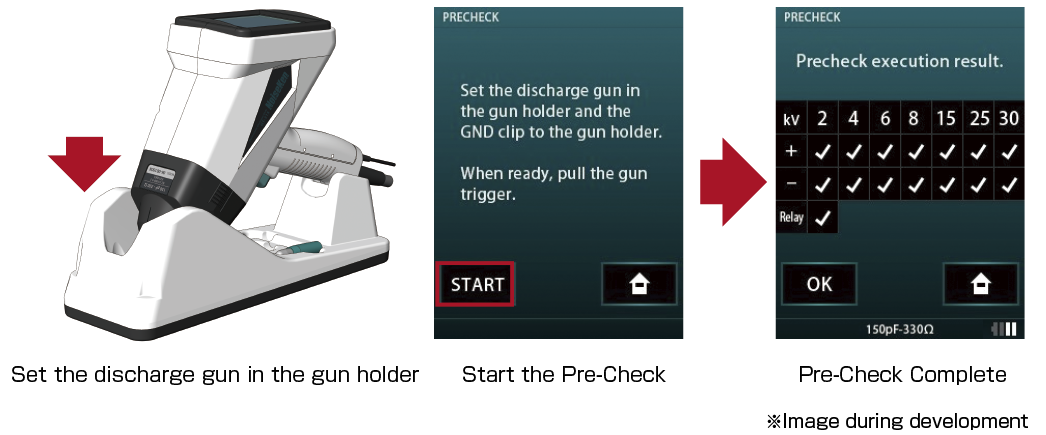

Three pre-check functions to ensure more reliable testing: “High voltage power supply output check,” “Insulation failure check,” and “Discharge relay operation check.
” Three pre-check functions allow early detection of abnormalities in the testing equipment.
Does not require a dedicated measuring device, anyone can easily operate this function.
Features
- IEC 61000-4-2 / ISO 10605 Standards compliance.
- Touch panel operation discharge gun improves operability.
- Portable battery unit offer convenient testing for large equipment.
- Pre-check function for simple pre-start inspection to ensure correct testing.
- One-touch replacement of CR unit.
ESS-S3011A : Product video full version
Specifications
| Parameter | Features / Specifications |
|---|---|
| Output voltage | 0.2kV～30.0kV |
| Polarity | Positive / negative |
| Repetition cycle | 0.05s ～ 600s |
| Discharge number of times | 1 – 60,000 times, continuous |
| Discharge mode | Contact discharge / Air discharge |
| Test mode |
IEC standard test mode Manual test mode Sequence test mode |
| Trigger mode | Gun trigger / External trigger |
| Discharge detection | present |
| Pre-check function | present |
| CR-cup check | IEC & ISO detection |
| Operation panel | Color LCD touch panel (resistive film type) |
| Language | English / Japanese |
| External Control | Optical connector connection for PC communication |
| Power Supply | AC100V ～ 240V / battery |
| Dimensions |
Power Supply Unit: (W)180×(H)124×(D)292mm Gun: (W)90×(H)236.2×(D)285.4mm * protrusions excluded |
| Weight |
Power Supply Unit: 3kg (excluding AC adapter) Gun: 1.2kg (cables included/connector excluded) |
| Gun Holder | Included in the package |
To view the pdf files, the Adobe Reader from Adobe Systems is required.
