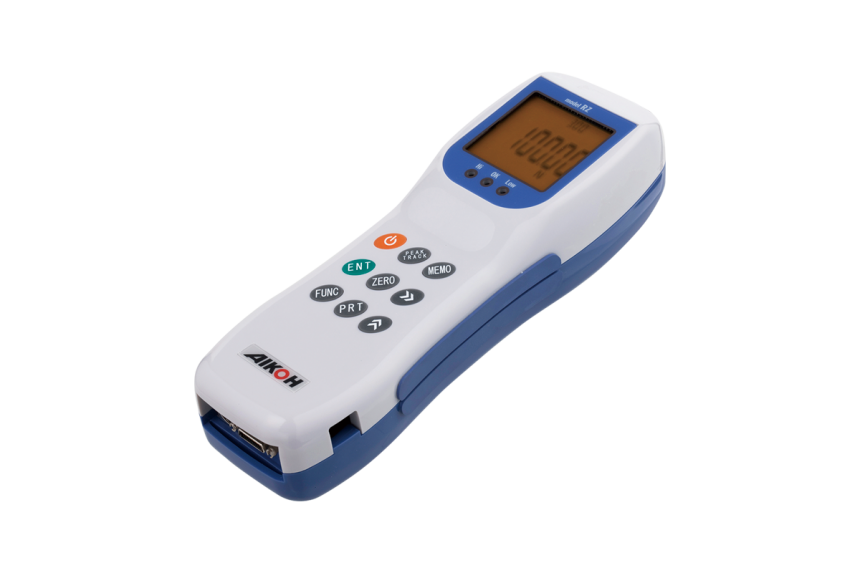

- AIKOH Digital Force Gauge RZ Series
The RZ Series digital force gauges are newly developed user-friendly gauges that have significantly improved the operability of conventional push-pull gauges while keeping their functions.
They come with such convenient functions as data output by use of a newly adopted USB and charging and they also feature quick and easy operations such as changing sampling rates, changing over between three units, printer output and display reversing.
Their shape and buttons conventional concept.
Digital Force Gauge
Model:
RZ Series
Maker:
AIKOH
Fitur
- Easy-to-read display.
- Auto power off function.
- USB data output.
- Analog output (±2V F.S.).
- Multiple power supplies (100 – 240 V).
- Usable time: Approx. 30 hours after full charge.
Penggunaan
- Measurement of operating force(Switch, lever, door, drawer)
- Measurement of strength
- Measurement of peeling force
Spesifikasi
| RZ-1 | RZ-2 | RZ-5 | RZ-10 | RZ-20 | RZ-50 | RZ-100 | |
| Rated capacity | 10N (1Kgf) |
20N (2Kgf) |
50N (5Kgf) |
100N (10Kgf) |
200N (20Kgf) |
500N (50Kgf) |
1000N (100Kgf) |
| Min. display unit | 0.001N (0.1gf) |
0.01N (1gf) |
0.1N (10gf) |
||||
| Accuracy | ±0.2％F.S. | ||||||
| Sampling cycle | 1 ms, 5 ms, 16 ms, 50 ms, 125 ms and 250 ms selectable | ||||||
| Display update interval | 1, 2, 5, 10, 20 times/sec. selectable | ||||||
| Display | LCD, signed, 5 digits | ||||||
| Output | Vertical: W200 x D120 mmUSB output Analog voltage ±2V / F.S. Printer output Motorized stand control External connection hold |
||||||
| Mass | Approx. 375g | ||||||
| Power supply | Nickel-metal hydride battery, AC adapter Model 780(100VAC – 240VAC) | ||||||
| Standard accessories | |||||||
| Options | Output cable, software RZ-3000, test stand, printer BL2-58SNWJC | ||||||
| Optional cables | I/O cable RZ-OP-1, I/O cable RZ-OP-2, Mitutoyo DP-1VR printer cable RZ-OP-3, Sanei Electric line thermal printer cable RZ-OP-4 RZ-OP-1 : For Stand control function only RZ-OP-2 : For Stand control function, Analog output and Comparator output |
||||||
