ONO SOKKI GS series – Cảm biến đo khoảng cách tuyến tính

Tất cả sản phẩm trong dòng GS được nâng cấp. Trong đó:

- Model GS-1700/1800 là dòng nhỏ gọn, định hướng phân khúc giá thấp.
- Model GS-6700/6800 có khả năng chống rung, tốt hơn gấp 1.5 lần so với các dòng cơ bản.
- Model GS-4700/4800 được thiết kế để sử dụng trong dây chuyền công nghiệp với hiệu năng cao.

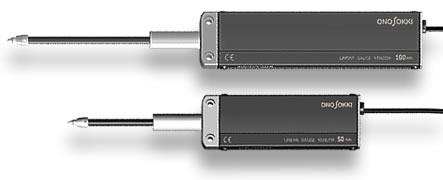

- Model GS-5050/5100 có dải đo rộng nhất, từ 50 ~ 100mm. Sử dụng cơ cấu vòng bi để tăng tuổi thọ.

Đặc biệt là GS-4700/GS-4800, được phát triển để sử dụng trong các môi trường khắc nghiệt, thời gian đáp ứng nhanh, hoặc công đoạn dây chuyền vừa sản xuất, vừa kiểm tra đồng thời. Đây là dòng sản phẩm hiệu năng cao nhất hiện nay.

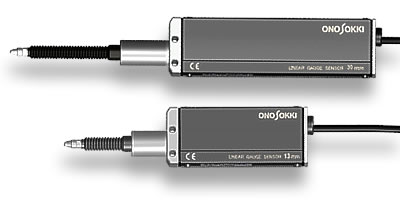

Cảm biến đo khoảng cách tuyến tính

Model:

GS series

Maker:

Ono Sokki

Download Materials

TÍNH NĂNG NỔI BẬT

  • Tuổi thọ vòng bi cao gấp 3 lần so với model cũ. Số lần trượt từ 5 triệu → 15 triệu
  • Chống bụi, chống nước , dầu mỡ… vượt trội so với model trước đó. Cấp bảo vệ tăng từ IP64 → IP66G
  • Khả năng chống Rung/Sốc  hiệu quả gấp đôi so với model hiện tại.
    Kháng rung: 98 m/s2 →196 m/s2
    Kháng sốc: 980 m/s2 →1960 m/s2

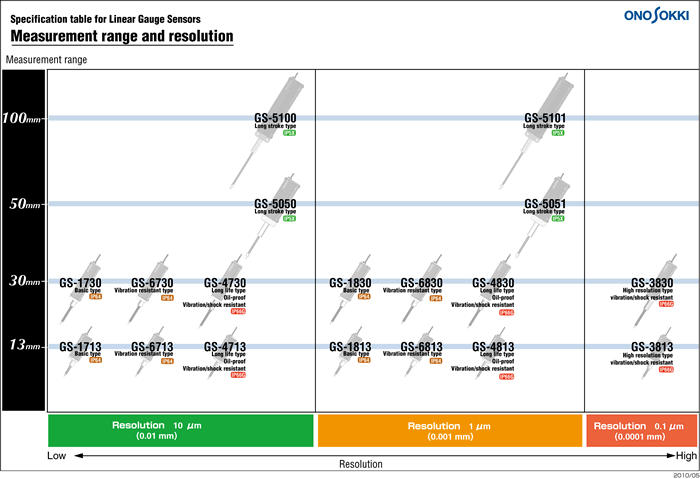

PHÂN KHÚC ĐỊNH VỊ SẢN PHẨM

THÔNG SỐ KỸ THUẬT TỪNG MODEL

Dòng Cơ Bản

Model name GS-1713A GS-1730A GS-1813A GS-1830A
Item
Measurement range 13 mm 30 mm 13 mm 30 mm
Resolution 10 μm 1 μm
Accuracy (at 20 °C) 3 μm 3 μm 2 μm 3 μm
Maximum spindle velocity*1 1(4) m/s 0.3(1.2) m/s
Measurement force(downward)*2 1.3 N or less 1.9 N or less 1.3 N or less 1.9 N or less
Number of sliding times 6.5 million times or more
(proven in our endurance test)
Protection class IP64
(not including connector part)
Stem diameter Ø15 mm+0-0.009
Power supply 4.5 to 5.5 VDC
Power consumption (5 VDC) 120 mA or less
Signal output (5 VDC) Two-phase square wave, phase difference: 90° ± 20°
Output voltage Hi:4.5 V or more / Lo:0.4 V or less
Output impedance Approx. 22 Ω
Vibration resistance 98 m/s2 in each of the three axial directions (75 minutes per each),
(when the power is off) *3 10 cycles of 10 Hz to150 Hz sweeping
Shock resistance 980 m/s2 in each of direction for each of three axex,
(when the power is off)*3 three times for each of ±X,Y and Z directions, sine half-wave, pulse duration 6 ms
Operating temperature range 0 to +40 °C
Storage temperature range -10 to +55 °C
Cable length Approx. 1.9 m
Weight (including cable, connector) Approx. 250 g Approx. 310 g Approx. 250 g Approx. 310 g
Accessories Instruction manual, spanner



Loại chống rung

Model name GS-6713A GS-6730A GS-6813A GS-6830A
Item
Measurement range 13 mm 30 mm 13 mm 30 mm
Resolution 10 μm 1 μm
Accuracy (at 20 °C) 3 μm 3 μm 2 μm 3 μm
Maximum spindle velocity*1 1(4) m/s 0.3(1.2) m/s
Measurement force(downward)*2 1.3 N or less 1.9 N or less 1.3 N or less 1.9 N or less
Number of sliding times 6.5 million times or more
(proven in our endurance test)
Protection class IP64
(not including connector part)
Stem diameter Ø15 mm+0-0.009
Power supply 4.5 to 5.5 VDC
Power consumption (5 VDC) 120 mA or less
Signal output (5 VDC) Two-phase square wave, phase difference: 90° ±20°
Output voltage Hi:4.5 V or more / Lo:0.4 V or less
Output impedance Approx. 22 Ω
Vibration resistance 147 m/s2 in each of the three axial directions (75 minutes per each),
(when the power is off)*3 10 cycles of 10 Hz to150 Hz sweeping
Shock resistance 1470 m/s2 in each direction for each of three axes,
(when the power is off)*3 three times for each of the ±X,Y and Z directions, sine half-wave, pulse duration 6 ms
Operating temperature range 0 to +40 °C
Storage temperature range -10 to +55 °C
Cable length Approx. 1.9 m
Weight (including cable, connector) Approx. 250 g Approx. 310 g Approx. 250 g Approx. 310 g
Accessories Instruction manual, spanner

Dòng có tuổi thọ cao

Model name GS-6713A GS-6730A GS-6813A GS-6830A
Item
Measurement range 13 mm 30 mm 13 mm 30 mm
Resolution 10 μm 1 μm
Accuracy (at 20 °C) 3 μm 3 μm 2 μm 3 μm
Maximum spindle velocity*1 1(4) m/s 0.3(1.2) m/s
Measurement force(downward)*2 1.3 N or less 1.9 N or less 1.3 N or less 1.9 N or less
Number of sliding times 6.5 million times or more
(proven in our endurance test)
Protection class IP64
(not including connector part)
Stem diameter Ø15 mm+0-0.009
Power supply 4.5 to 5.5 VDC
Power consumption (5 VDC) 120 mA or less
Signal output (5 VDC) Two-phase square wave, phase difference: 90° ±20°
Output voltage Hi:4.5 V or more / Lo:0.4 V or less
Output impedance Approx. 22 Ω
Vibration resistance 147 m/s2 in each of the three axial directions (75 minutes per each),
(when the power is off)*3 10 cycles of 10 Hz to150 Hz sweeping
Shock resistance 1470 m/s2 in each direction for each of three axes,
(when the power is off)*3 three times for each of the ±X,Y and Z directions, sine half-wave, pulse duration 6 ms
Operating temperature range 0 to +40 °C
Storage temperature range -10 to +55 °C
Cable length Approx. 1.9 m
Weight (including cable, connector) Approx. 250 g Approx. 310 g Approx. 250 g Approx. 310 g
Accessories Instruction manual, spanner



Loại có dải do rộng

Model name GS-6713A GS-6730A GS-6813A GS-6830A
Item
Measurement range 13 mm 30 mm 13 mm 30 mm
Resolution 10 μm 1 μm
Accuracy (at 20 °C) 3 μm 3 μm 2 μm 3 μm
Maximum spindle velocity*1 1(4) m/s 0.3(1.2) m/s
Measurement force(downward)*2 1.3 N or less 1.9 N or less 1.3 N or less 1.9 N or less
Number of sliding times 6.5 million times or more
(proven in our endurance test)
Protection class IP64
(not including connector part)
Stem diameter Ø15 mm+0-0.009
Power supply 4.5 to 5.5 VDC
Power consumption (5 VDC) 120 mA or less
Signal output (5 VDC) Two-phase square wave, phase difference: 90° ±20°
Output voltage Hi:4.5 V or more / Lo:0.4 V or less
Output impedance Approx. 22 Ω
Vibration resistance 147 m/s2 in each of the three axial directions (75 minutes per each),
(when the power is off)*3 10 cycles of 10 Hz to150 Hz sweeping
Shock resistance 1470 m/s2 in each direction for each of three axes,
(when the power is off)*3 three times for each of the ±X,Y and Z directions, sine half-wave, pulse duration 6 ms
Operating temperature range 0 to +40 °C
Storage temperature range -10 to +55 °C
Cable length Approx. 1.9 m
Weight (including cable, connector) Approx. 250 g Approx. 310 g Approx. 250 g Approx. 310 g
Accessories Instruction manual, spanner



Loại có độ chia/phân giải cao

Model name GS-6713A GS-6730A GS-6813A GS-6830A
Item
Measurement range 13 mm 30 mm 13 mm 30 mm
Resolution 10 μm 1 μm
Accuracy (at 20 °C) 3 μm 3 μm 2 μm 3 μm
Maximum spindle velocity*1 1(4) m/s 0.3(1.2) m/s
Measurement force(downward)*2 1.3 N or less 1.9 N or less 1.3 N or less 1.9 N or less
Number of sliding times 6.5 million times or more
(proven in our endurance test)
Protection class IP64
(not including connector part)
Stem diameter Ø15 mm+0-0.009
Power supply 4.5 to 5.5 VDC
Power consumption (5 VDC) 120 mA or less
Signal output (5 VDC) Two-phase square wave, phase difference: 90° ±20°
Output voltage Hi:4.5 V or more / Lo:0.4 V or less
Output impedance Approx. 22 Ω
Vibration resistance 147 m/s2 in each of the three axial directions (75 minutes per each),
(when the power is off)*3 10 cycles of 10 Hz to150 Hz sweeping
Shock resistance 1470 m/s2 in each direction for each of three axes,
(when the power is off)*3 three times for each of the ±X,Y and Z directions, sine half-wave, pulse duration 6 ms
Operating temperature range 0 to +40 °C
Storage temperature range -10 to +55 °C
Cable length Approx. 1.9 m
Weight (including cable, connector) Approx. 250 g Approx. 310 g Approx. 250 g Approx. 310 g
Accessories Instruction manual, spanner
