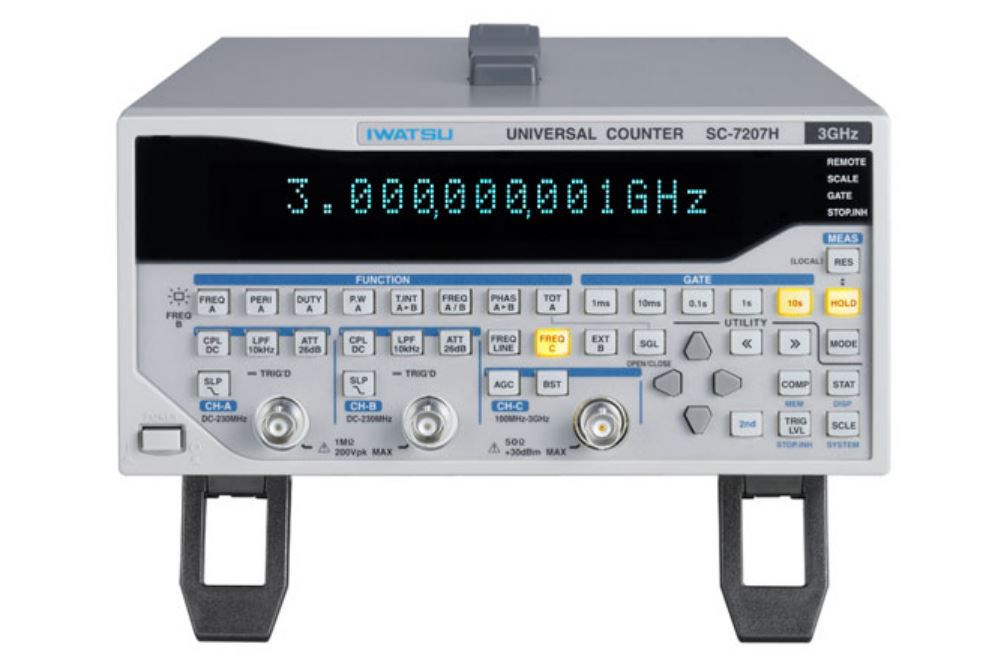

IWATSU– SC-7205A / SC-7206A / SC-7207A –Bộ đếm đa năng.

Dòng sản phẩm gồm ba loại bộ đếm đa năng mới với hiệu suất chi phí cao được thiết kế với mục đích thao tác đơn giản với một phím bấm. Màn hình hiển thị thân thiện với người dùng và các chức năng tính toán hỗ trợ bất kỳ ứng dụng nào.
Bộ đếm đa năng SC-7207H / SC-7206H / SC-7205H cung cấp đầy đủ các khả năng bao gồm tần số, chu kỳ, khoảng thời gian, độ rộng xung, pha, tỷ lệ tần số, chu kỳ, tích lũy sự kiện và đo điện áp đỉnh, với thao tác đơn giản. Chúng thích hợp cho R & D và bộ phận kỹ thuật nói chung như một công cụ đo lường cơ bản cho các dây chuyền sản xuất / kiểm tra.

Bộ đếm đa năng.

Model:

SC-7205A / SC-7206A / SC-7207A

Maker:

IWATSU

Download Materials

Tính năng và đặc trưng sản phẩm

  • Cho phép đo tần số cho hai kênh độc lập (SC-7207H, SC-7205H)
  • Xung với các phép đo và phép đo khoảng thời gian mở rộng đáng kể phạm vi của phép đo một cổng.
  • Thao tác dễ dàng với các phím bấm duy nhất cho mỗi thao tác.
  • Màn hình hiển thị dễ nhìn. Thông tin chi tiết được hiển thị với độ phân giải 5 x 7 chấm.
  • Chức năng AUTO-TRIGGER loại bỏ nhu cầu thiết lập mức kích hoạt. Tất nhiên, cũng có thể thiết lập thủ công.
  • Làm cho các hoạt động trên dây chuyền hiệu quả hơn với các chức năng tính toán thống kê và so sánh.
  • Các phép đo điện áp đỉnh tín hiệu đầu vào giúp dễ dàng xác định biên độ dạng sóng.
  • Chức năng SAVE / RECALL trên bảng điều khiển dễ dàng cho người sử dụng lưu và gọi lại các chương trình, chức năng trước đó.
  • GPIB (tùy chọn cho giao diện SC-7205H: SC-701) và RS-232 cung cấp khả năng điều khiển từ xa đầy đủ.

* Truyền dữ liệu được thực hiện trong thời gian thực với tốc độ cao tối đa 200 mục dữ liệu/giây, góp phần cải thiện lưu lượng đường truyền.

  • Dòng sản phẩm có đầy đủ các tùy chọn để cung cấp các tính năng tiện ích khác.
  • Đầu ra so sánh (bộ thu mở) với đầu vào kích hoạt bên ngoài I / O kỹ thuật số (SC-702.).

* 150mA có thể được sử dụng cho thiết bị giám sát đường dây không có cation modifi để cung cấp biên độ 50V.

  • Máy hiện sóng tiêu chuẩn có độ ổn định cao (SC-703A) cung cấp các phép đo chính xác cao.

Thông số kỹ thuật sản phẩm

Frequency A (FREQ-A)



•Measuring range and resolution   * SC-7206H is not equipped with EXT-B gate



SC-7207H SC-7206H, SC-7205H
Reference time
(reference frequency)
10ns (100MHz) 100ns (10MHz)
Range DC 6mHz to 230MHz 0.6mHz to 230MHz
AC 10Hz to 230MHz
Resolution and count method Frequency Below 100MHz 100MHz or more Below 10MHz 10MHz or more
Count method Reciprocal count Direct count Reciprocal count Direct count
1ms gate 5 digits 1kHz 4 digits 1kHz
10ms gate 6 digits 100Hz 5 digits 100Hz
0.1s gate 7 digits 10Hz 6 digits 10Hz
1s gate 8 digits 1Hz 7 digits 1Hz
10s gate 9 digits 0.1Hz 8 digits 0.1Hz
EXT-B gate * Reciprocal count method: The number of digits is determined by external gate time
SGL gate Reciprocal count method: The number of digits is determined by measured signal
AC Line Frequency (FREQ-LINE) (for SC-7207H and SC-7205H only)



•Measuring range and resolution



SC-7207H SC-7205H
Reference time 10ns 100ns
Range 45Hz to 440Hz
Resolution 0.1s gate 7 digits 6 digits
1s gate 8 digits 7 digits
10s gate 9 digits 8 digits
Frequency C (FREQ-C) (for SC-7207H and SC-7206H only)



•Measuring range and resolution



SC-7207H SC-7206H
Reference time
(reference frequency)
10ns (100MHz) 100ns (10MHz)
Range
(for AC coupling only)
100MHz to 3GHz
1/16 prescaler
100MHz to 2GHz
1/16 prescaler
Resolution and count method Measured signal Below 1.6GHz 1.6GHz or more Below 160MHz 160MHz or more
Count method Reciprocal count Direct count Reciprocal count Direct count
1ms gate 5 digits 10kHz 4 digits 10kHz
10ms gate 6 digits 1kHz 5 digits 1kHz
0.1s gate 7 digits 100Hz 6 digits 100Hz
1s gate 8 digits 10Hz 7 digits 10Hz
10s gate 9 digits 1Hz 8 digits 1Hz
EXT-B gate Reciprocal count method: The number of digits is determined by external gate time Not equipped with EXT-B
Period A (PERI-A)



•Measuring range and resolution   *SC-7206H is not equipped with EXT-B gate



SC-7207H SC-7206H, SC-7205H
Reference time 10ns 100ns
Range DC couple 5ns to 171s 5ns to 1,717s
AC couple 5ns to 0.1s
Resolution 1ms gate 5 digits 4 digits
10ms gate 6 digits 5 digits
0.1s gate 7 digits 6 digits
1s gate 8 digits 7 digits
10s gate 9 digits 8 digits
EXT-B gate * The number of digits is determined by external gate time
SGL gate The number of digits is determined by measured signal
Duty ratio A (DUTY-A)



•Measuring range and resolution



SC-7207H SC-7206H, SC-7205H
Input signal frequency range Same as FREQ-A
Measuring range SGL gate 0.01µ to 99.999,999,99 [%]
Internal gate 0.2µ to 99.999,999,8 [%] 2µ to 99.999,998 [%]
Measuring resolution SGL gate 10ns/input period
x 100 [%]
100ns/input period
x 100 [%]
Average count of internal gate
1 to 24 10ns/average input period
x 100 [%]
100ns/average input period
x 100 [%]
25 to 2,499 1ns/average input period
x 100 [%]
10ns/average input period
x 100 [%]
2,500 to 249,999 100ps/average input period
x 100 [%]
1ns/average input period
x 100 [%]
250,000 to 24,999,999 10ps/average input period
x 100 [%]
100ps/average input period
x 100 [%]
25,000,000 or more 1ps/average input period
x 100 [%]
10ps/average input period
x 100 [%]
Pulse width A (P.W-A)



•Minimum pulse width: 6ns
•Maximum repetitive frequency: 80MHz
•Measuring range and resolution



SC-7207H SC-7206H, SC-7205H
Reference time 10ns 100ns
Measuring range SGL gate 10ns to 171s 100ns to 1,717s
Internal gate (1ms to 10s) 10ns to approx. 1/2 gate time 100ns to approx. 1/2 gate time
Measuring resolution SGL gate 10ns to 100ns 100ns to 1ms
Average count of internal gate
1 to 24 10ns 100ns
25 to 2,499 1ns 10ns
2,500 to 249,999 100ps 1ns
250,000 to 24,999,999 10ps 100ps
25,000,000 or more 1ps 10ps







Time interval A –> B (T.INT A –> B) (for SC-7207H and SC-7205H only)



•Minimum time interval: 6ns
•Maximum repetitive frequency: 80MHz
•Measuring range and resolution



SC-7207H SC-7205H
Reference time 10ns 100ns
Measuring range SGL gate 10ns to 10,955s 100ns to 109,951s
Internal gate (1ms to 10s) 10ns to approx. 1/2 gate time 100ns to approx. 1/2 gate time
Measuring resolution SGL gate 10ns to 10µs 100ns to 100µs
Average count of internal gate
1 to 24 10ns 100ns
25 to 2,499 1ns 10ns
2,500 to 249,999 100ps 1ns
250,000 to 24,999,999 10ps 100ps
25,000,000 or more 1ps 10ps
Frequency ratio A/B (FREQ A/B) (for SC-7207H and SC-7205H only)



•Measuring range and resolution



SC-7207H SC-7205H
Input signal frequency range Both CH-A and CH-B are the same as that for FREQ-A
Measuring range Internal gate (1ms to 10s) 1E-9 to 1E+9
Measuring resolution Internal gate (1ms to 10s) 1+LOG (CH-A input frequency x gate time) digits
Phase measuring A –> B (PHAS A –> B) (for SC-7207H and SC-7205H only)



•Minimum time interval: 6ns
•Maximum repetitive frequency: 80MHz
•Measuring range and resolution



SC-7207H SC-7205H
Reference time 10ns 100ns
Measuring range SGL gate 0.1µ to 359.999,999,9 [°]
Internal gate 1µ to 359.999,999 [°] 10µ to 359.999,99 [°]
Measuring resolution SGL gate 0ns/input period
x 360 [°]
100ns/input period
x 360 [°]
Average count of internal gate
1 to 24 10ns/average input period
x 360 [°]
100ns/average input period
x 360 [°]
25 to 2,499 1ns/average input period
x 360 [°]
10ns/average input period
x 360 [°]
2,500 to 249,999 100ps/average input period
x 360 [°]
1ns/average input period
x 360 [°]
250,000 to 24,999,999 10ps/average input period
x 360 [°]
100ps/average input period
x 360 [°]
25,000,000 or more 1ps/average input period
x 360 [°]
10ps/average input period
x 360 [°]
Peak voltage measuring (SC-7206H is not equipped with CH-B)



Measures and displays in real-time the voltage amplitude of the measured signal at CH-A or CH-B.



Frequency range 150Hz <= input frequency <= 50MHz
Response time 2 seconds or less
Voltage range ±2.50V (ATT off, resolution: 10mV), ±50.0V (ATT on, resolution: 100mV)
Measuring error ATT off: 10% of indication ±50mV
ATT on: not specified
CH-A, CH-B input terminal (SC-7206H is not equipped with CH-B)



Input RC Approx. 1MW/20pF or less
Coupling AC or DC
Low pass filter Off, 10kHz
Attenuator Off, 26dB (1/20)
Trigger level
Measuring Range ATT
off
-2.50V to +2.50V
(resolution: 10mV)
ATT
on
-50.0V to +50.0V
(resolution: 100mV)
accuracy
(0°C to +40°C)
ATT
off
10% ±30mV of the set value
(±3% when +2V to -2 V )
ATT
on
10% ±300mV of the set value
(±3% when +40V to -40 V )
Operating input voltage range
ATT off ±2.5V
ATT on ±50V
Input sensitivity
Manual trigger ATT
off
30mVrms (DC to 230MHz)
ATT
on
0.6Vrms (DC to 230MHz)
Auto trigger ATT
off
200mVrms
(10kHz to 230MHz, sine wave)
ATT
on
4Vrms
(10kHz to 230MHz, sine wave)
CH-C input terminal (for SC-7207H and SC-7206H only)



Maximum input power +30dBm (approx. 7Vrms when 1mW/50W = 0dBm as a reference)
Impedance Approx. 50W
Coupling AC
VSWR 2.0 or less (SC-7207H: 100MHz to 3GHz, SC-7206H: 100MHz to 2GHz)
Input sensitivity (Sine wave: up to 2 GHz for SC-7206H)



AGC off/on -20dBm (100MHz <= input frequency <= 300MHz)
-25dBm (300MHz < input frequency <= 1.5GHz)
-20dBm (1.5GHz < input frequency <= 3.0GHz)



Burst detection
Detection frequency range SC-7207H 100MHz to 3GHz
SC-7206H 100MHz to 2GHz



Input sensitivity (sine wave: up to 2GHz for SC-7206H)
AGC
off
-20dBm (100MHz <= input frequency <= 1.2GHz)
-10dBm (1.2GHz < input frequency <= 3.0GHz)



Detection delay time 500µs
(Burst period >= set gate + 500µs)
10MHz STD IN



BNC terminal for more stable input of the external reference frequency



Frequency 10MHz±50Hz (±5ppm)
Amplitude 1Vrms to 5Vrms, threshold = 0V
Input resistance Approx. 6.4kW
Input coupling AC
10MHz STD OUT/(MARKER OUT)



BNC terminal for output of internal reference oscillator or marker signal.
Marker signal is a signal that presupposes the brightness modulation (Z axis) of the analog oscilloscope. It is enabled at the SGL gate when the function is in between the time interval (T.INT A –> B) and phase (PHAS A –> B). Output is “Lo level” from the start of CH-A measuring to the start of CH-B measuring.



Output CMOS level
Reference frequency output 10MHz: Stability is the same as that for the internal reference oscillator.
Marker output In the 5MHz band, L is output during actual measuring.
(for SC-7207H and SC-7205H only. Marker selection is disabled with SC-7206H.)
Output interface



•RS-232 is equipped as standard
•GP-IB is equipped as standard (option SC-701 for SC-7205H)
•Digital I/O option can be installed (SC-702)
Environmental conditions



•Warm-up time: 60 minutes or more
•Operating temperature/humidity: 0°C to +40°C/85%R.H or less (no condensation)
•Storage temperature/humidity: -20°C to +60°C/90%R.H or less (no condensation)
Reference oscillator



Equipped with SC-7207H, SC-7206H and SC-7205H as standard
Output is possible to the 10MHz OUT BNC terminal on the rear panel of the main unit.
•Oscillation frequency: 10MHz
•Temperature characteristics: ±2.5ppm/unit environmental temperature: 0°C to +40°C
•Aging rate: ±1.0ppm/year
Power supply conditions and power supply voltage changes (factory option)



•Voltage: AC100V / 110V to 120V / 220V to 240V
•Frequency: 50Hz, 60Hz, 400Hz
•Power consumption: At AC100V with optional SC-701 and SC-702 are installed.

SC-7207H 36VA MAX
SC-7206H 33VA MAX
SC-7205H 31VA MAX
Size



(210±2)W x (99±2)H x (353±2)L mm
(excluding options and protruded parts)
Weight



4.0kg or less (including optional SC-701 and SC-702)
Accessory



Power cord (1), operation manual CD-ROM (including options) (1)
